FD100.20-58X52

FD100.20-58X52 absolute value half empty shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value half empty shaft encoder, single turn and multi turn options

General overall dimension, with an outer diameter of 58mm, suitable for most installation occasions

As interface output

Binary code and gray code programmable

Short circuit protection, surge protection

Basic parameters

Outside diameter58mm

Diameter of half-air bushing8mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜45gcm2

Electrical parameters

Power supply29.5…31.6VDC

Output singalAS-interface

Output codeBinary/Gray code

Working current150mA

Max resolutionOne turn 13 bits(8192); Cycles 13 bits（8192）

Output frequency160KHz

Count directionThe counting direction can be controlled by the
input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceConnector：M12（4 pin）

Mechanical parameters

Flange typeClamping flange / Synchronous flange

MaterialsShell：AL；Flange:AL；axle sleeve : stainless steel

WeightAbout 460g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣20…+70℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

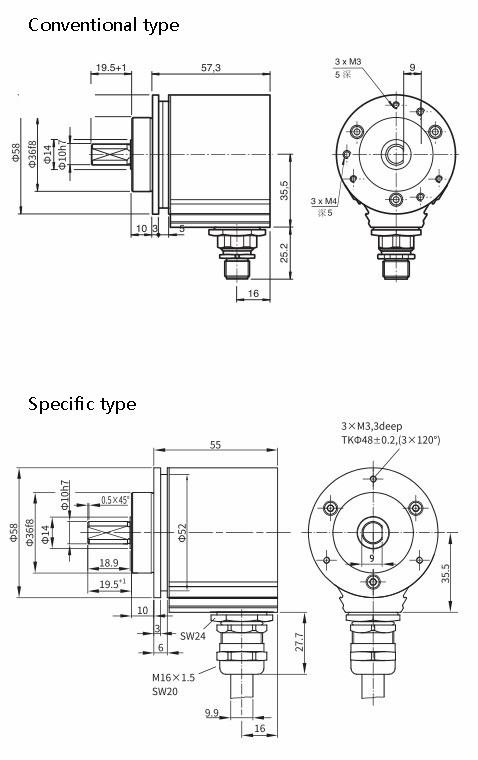

Overall dimensions

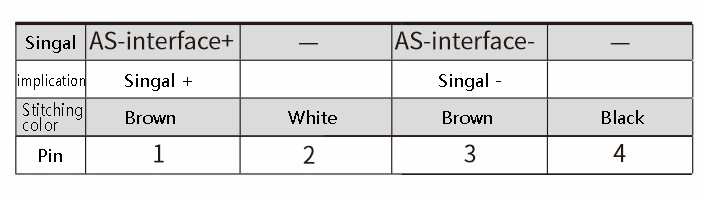

Wiring diagram
