FD100.30-58X0

FD100.30-58X0

FD100.30-58X0 heavy-duty incremental solid shaft encoder, suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Heavy-duty encoder with general dimensions, outer diameter of 58mm

Maximum axial load: axial 480N/radial 400N

The signal output mode is push-pull output and RS422

The protection level is IP67

The maximum operating temperature can reach 110℃

Basic parameters
Outside diameter58mm
Shaft diameter8mm，10mm，12mm
Maximum speed of revolution6000 r
Maximum shaft loadAxial/radial：480N / 400N
Starting torque＜4Ncm
Moment of inertia＜35gcm2
Electrical parameters
Power supply10…30VDC；5VDC
Output singal10…30VDC：push-pull；5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution100，300，360，500，512，1000，1024，1200，
1500，1800，2048，2500，3600，4096，
5000
Output frequencyMax 300KHz
Electrical interfaceCable connector：12×0.08mm²，1m
Connector：M23，12 pin
Mechanical parameters
Flange typeSpannflansche/synchronous flange
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 560g
Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；600m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃（Optional +110℃）
Storge temperature﹣40…+85℃
Protection classIP67

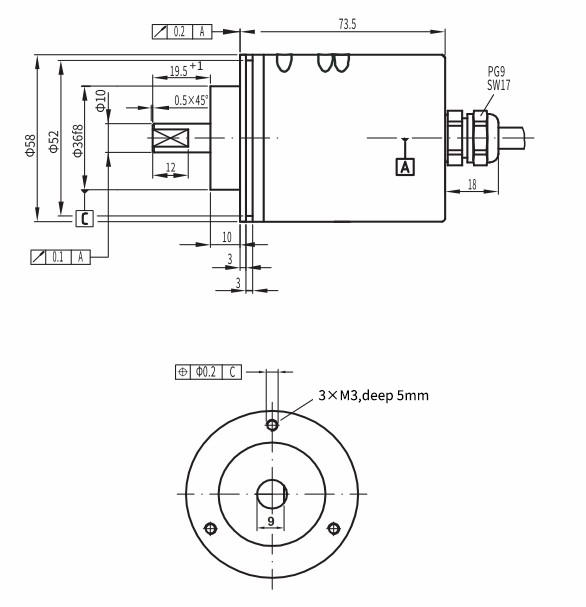

Overall dimensions

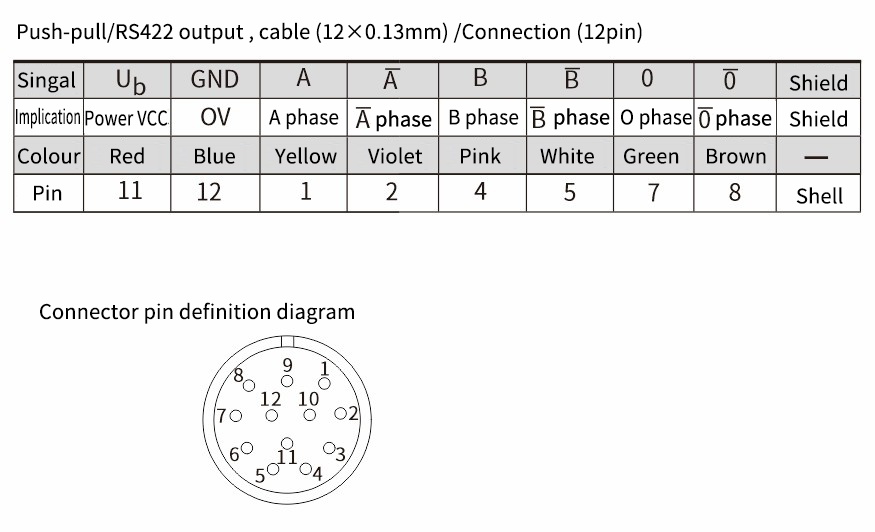

Wiring diagram
