FD100.30-100X0

FD100.30-100X0 heavy-duty incremental solid shaft encoder, suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Heavy-duty encoder, outer diameter size 100mm

Maximum axial load: axial 200N/radial 300N

The signal output mode is push-pull output and RS422

The protection level is IP67

The maximum operating temperature can reach 100℃

Basic parameters

Outside diameter100mm

Shaft diameter8mm…24mm

Maximum speed of revolution3000 r

Maximum shaft loadAxial/radial：200N / 300N

Starting torque＜5Ncm

Moment of inertia＜40gcm2

Electrical parameters

Power supply10…30VDC；5VDC

Output singal10…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution1024 , 2048 , 2500 , 3600

Output frequencyMax 300KHz

Electrical interfaceCable connection：12×0.08mm²，1m
Connection：M23，12 pin

Mechanical parameters

Flange typeSpannflansche

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 1700g

Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；600m/s² 3ms

Environmental conditions

Operating temperature﹣40…+100℃

Storge temperature﹣40…+100℃

Protection classIP67

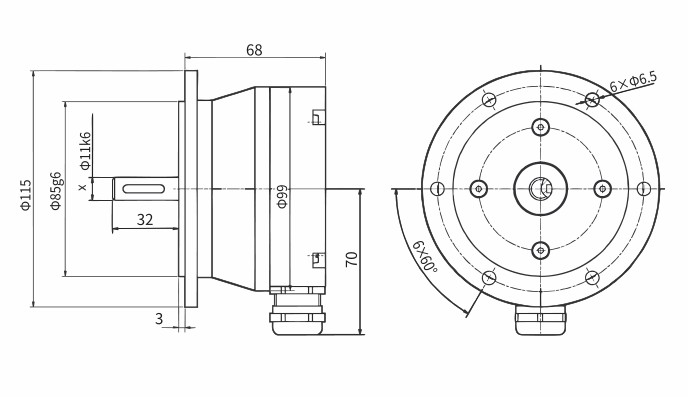

Overall dimensions

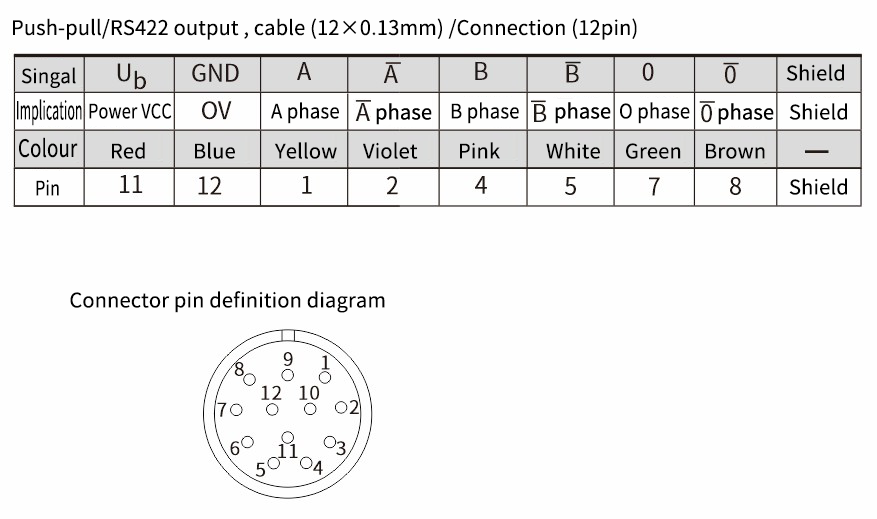

Wiring diagram
