FD100.30-110X1

FD100.30-110X1

FD100.30-110X1 heavy-duty incremental hollow shaft encoder is suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Heavy-duty encoder, outer diameter size of 110mm

Maximum axial load: axial 300N/radial 400N

The signal output mode is push-pull output and RS422

The protection level is IP69K

The maximum operating temperature can reach 80℃

Basic parameters
Outside diameter110mm
Shaft sleeve diameter16mm，20mm，25mm，28mm
Maximum speed of revolution2500 r
Maximum shaft load——
Starting torque＜10Ncm
Moment of inertia＜80gcm2
Electrical parameters
Power supply5…30VDC；5VDC
Output singal5…30VDC：Push-pull；5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution100 , 360 , 500 , 512 , 600 , 1000 , 1024 , 2048，
2500
Output frequencyMax 200KHz
Electrical interfaceCable connection：8×0.08mm²，0.5m
Connection：M23，12 pin
Mechanical parameters
Flange type——
MaterialsShell：AL；Flange：AL；shaft sleeve: stainless steel
WeightAbout 1200g
Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；600m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP67 / IP69K

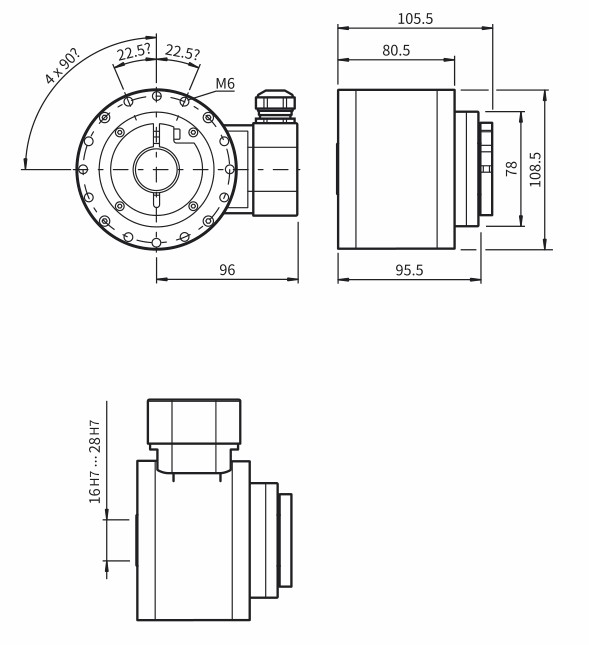

Overall dimensions

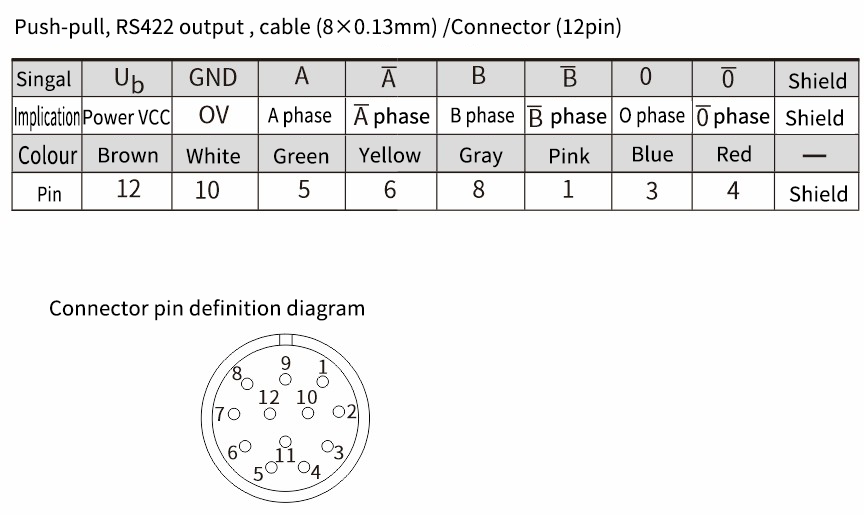

Wiring diagram
