FD100.30-100X2

FD100.30-100X2

FD100.30-100X2 heavy-duty incremental mid-air shaft encoder is suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Heavy-duty encoder, outer diameter size 100mm

Axle load up to 450N

Rugged, compact housing with shaft insulation up to 2.8KV

Temperature up to 100℃

Maximum operating speed is 10000 RPM

The junction box can be rotated 180°

Basic parameters
Outside diameter100mm
Shaft sleeve diameter12mm，16mm，17mm（cone）
Maximum speed of revolution10000 r
Maximum shaft loadAxial/radial：350N / 450N
Starting torque＜6Ncm
Moment of inertia＜160gcm2
Electrical parameters
Power supply5…30VDC；5VDC
Output singal5…30VDC：push-pull；5VDC：TTL
Working currentPush-pull：30mA；TTL：20mA
Resolution500 , 512 , 1000 , 1024 , 2048 , 2500 , 4096 ,
5000 Other customizable
Output frequencyMax 200KHz
Electrical interfaceCable connection：8×0.14mm²，0.5m
Connection：M23，12 pin；Junction box: 9
terminals
Mechanical parameters
Flange type——
MaterialsShell：AL；Flange：AL；shaft sleeve: stainless steel
WeightAbout 1300g
Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；600m/s² 3ms
Environmental conditions
Operating temperature﹣40…+100℃
Storge temperature﹣45…+105℃
Protection classIP67 / IP69K

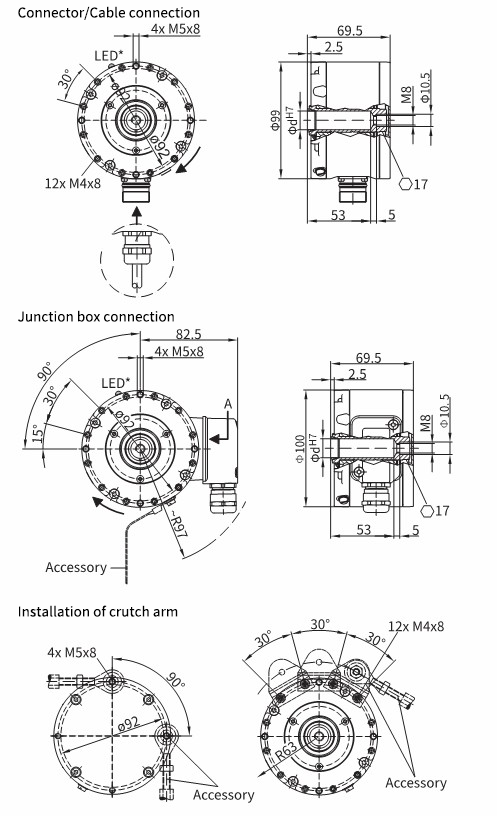

Overall dimensions

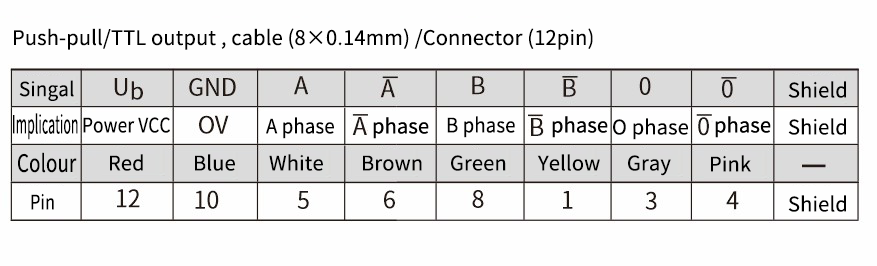

Wiring diagram
