FD100.30-42X00

FD100.30-42X00 heavy-duty absolute value solid shaft encoder is suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Outer diameter size is 42mm, stainless steel housing

Maximum axial load: axial 300N/ radial 300N

Maximum resolution is 25 bits

The signal output mode is SSI output

The protection class is IP67/IP69K

Basic parameters

Outside diameter42mm

Shaft diameter10mm

Maximum speed of revolution6000 r

Maximum shaft loadAxial/radial：300N / 300N

Starting torque＜5Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Output typeRS422

Output codeBinary/Gray code

Working current＜40mA

Maximium resolutionSingle turn13 bits（8192）；
Number of turns 12 bits（4096）

Output frequency0.1…2MBit/s

Count directionThe counting direction can be controlled by the
input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceConnector：M12，8 pin

Mechanical parameters

Flange typeSynchronous flange

MaterialsShell：stainless steel；Flange：stainless steel；
Shaft: stainless steel

WeightAbout 320g

Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；600m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP67 / IP69K

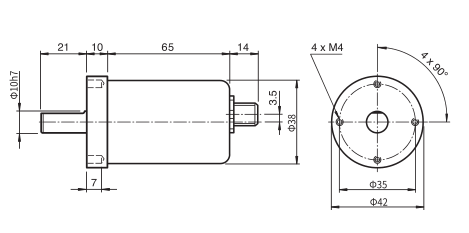

Overall dimensions

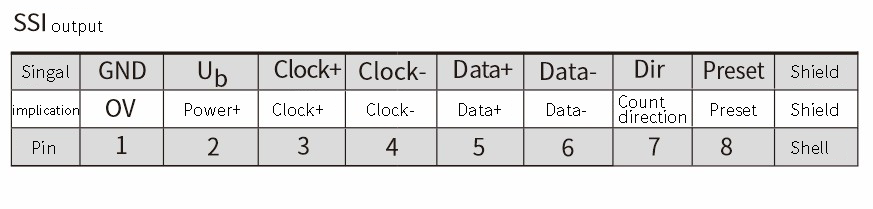

Wiring diagram
