FD100.30-115XX0

FD100.30-115XX0 heavy-duty absolute value solid shaft encoder, suitable for heavy industry such as steel works and lifting equipment.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Large external size, outer diameter size of 115mm

Maximum axial load: axial 40N/ radial 110N

Signal output mode is SSI or other optional

The protection level is IP67

Excellent resistance to shock and vibration

Basic parameters

Outside diameter115mm

Shaft diameter12mm,14mm，20mm

Maximum speed of revolution3600 r

Maximum shaft loadAxial/radial：40N / 110N

Starting torque＜6Ncm

Moment of inertia＜45gcm2

Electrical parameters

Power supply10…30VDC

Output singalSSI，PRSFIBUS，DeviceNet

Output typeRefer to different protocols

Output codeBinary/Gray code

Working current＜350mA

Maximium resolutionSingle turn15 bits（32768）；
Number of turns 15 bits（32768）

Output frequencyRefer to different protocols

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceRefer to different protocols

Mechanical parameters

Flange typeSpannflansche

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 1200g

Anti-VibrationIEC 68-2-6；300m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；600m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

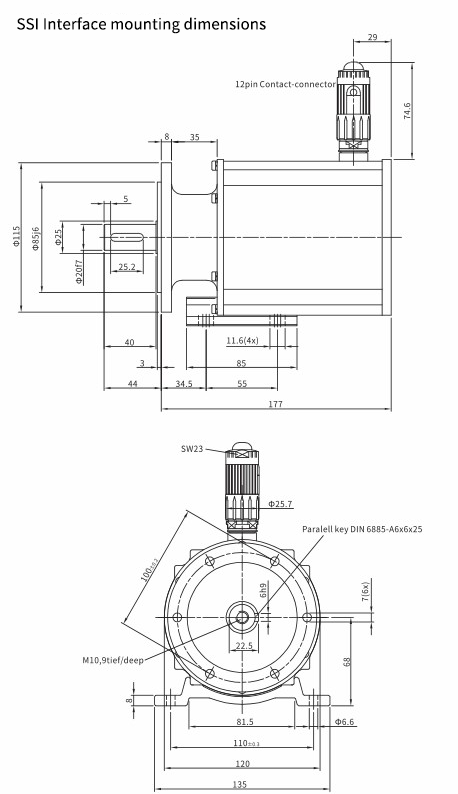

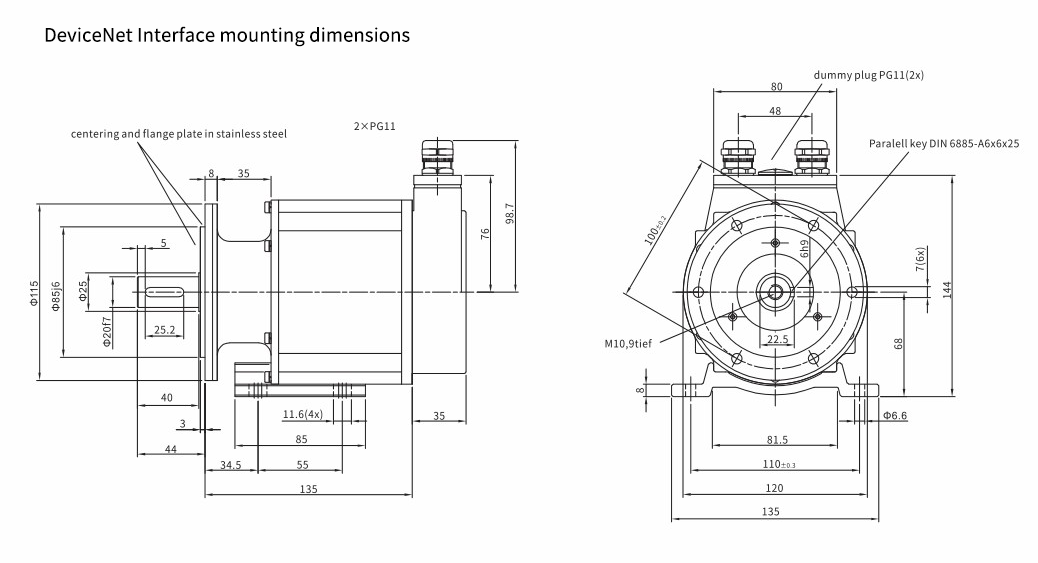

Overall dimensions

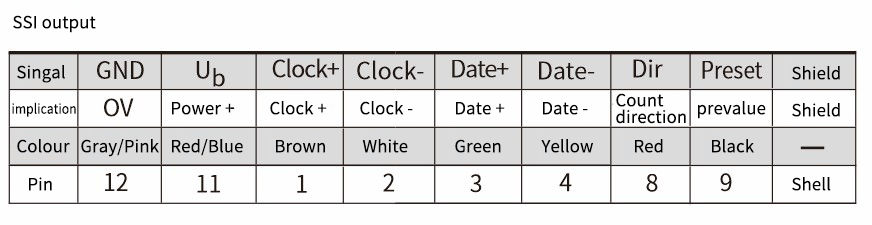

Wiring diagram



Brochures

Manuals

CAD/CAE

Certificate
