FD100.50-05EX0

FD100.50-05EX0 pull wire solid shaft encoder, direct measurement of length and position.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Compact design, easy to install in narrow space

The signal output mode is push-pull output and RS422

High measurement accuracy

Structure of the solid

Long life

Basic parameters

Outside diameter58mm

Shaft diameterGeneral：6mm，10mm
Specific：6mm，8mm，10mm，12mm

Maximum speed of revolution50N/80N：6000 r；20N/30N：12000 r

Maximum shaft loadAxial/radial：50N / 80N

Starting torque＜2Ncm

Moment of inertia＜25gcm2

Electrical parameters

Power supply10…30VDC

Output singalRefer to the corresponding parameters of
incremental and absolute value 58 series
products

Resolution200 pulses per turn, 333.3 pulses per turn is optional

Connection typeConnector or cable connection

Mechanical parameters

Flange typeClamping flange/synchronous flange

MaterialsShell：AL；flange：AL；Shaft: stainless steel

WeightAbout 310g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

The main features of the cable boxShort range，simple type

Measuring range of wire drawing box2m，3m，5m optional

Effective length per revolution200mm，334.1mm optional

Pull wire materialStainless steel 316L

Cable box materialABS

End of drawstringThe ball line

Pull5…15N

Service lifeA million times

Environmental conditions

Operating temperature﹣30…+80℃

Storge temperature﹣40…+85℃

Protection classIP65

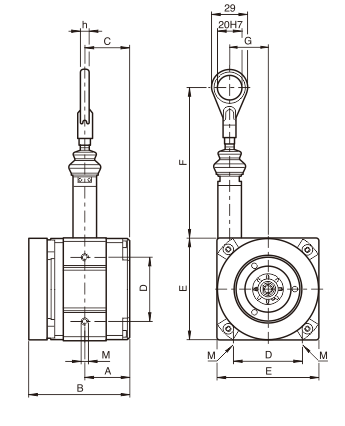

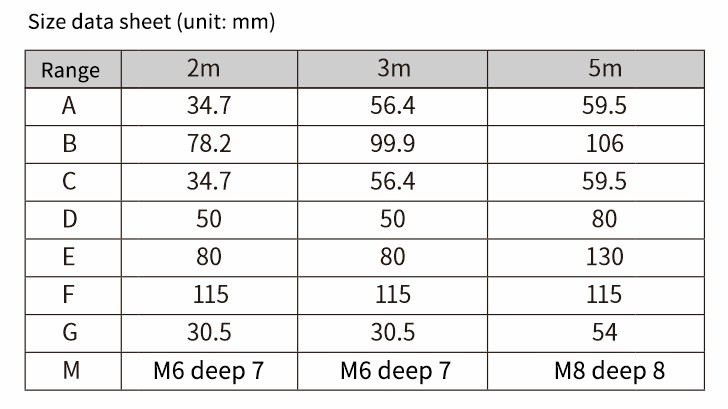

Overall dimensions
