FD-L2M

FD-L2M infrared ranging sensor can be used for vehicle collision avoidance limit or alarm device.It is often used to detect the accurate position of the vehicle and the object in the motion of the production line.
Type of sample：FD-L2M04-PN1IM12.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Small-size infrared ranging

Easy to target with visible beam

Light on, dark on can be set

Operating voltage range from 18V to 30V

With switching output and analog output

Alarm distance range can be set

It can detect the accurate position of the vehicle and the object in the production line

Basic parameters

Measurement range0.12…1.4m

Resolution ratio3mm

Absolute accuracy of measurement±0.5%

Repeatability±5mm

LightInfrared

Spot diameterΦ6

Temperature drift±1.5mm/K

Measurement timeQuick working mode：1.4ms
Standard working mode：10ms
Precise mode of operation：50ms（factory set）

Start-up delay≤300ms

Electrical parameters

Power supply10…30VDC

Residual ripple≤15%

Short-circuit current≤150mA

Digital outputPush-pull output

Analog output4…20mA / 0…10V / 0…5V optional

Communication interfaceRS232 / RS485 optional

Mechanical parameters

ShellMetal ，pressure casting

Optical protectionGlass

ConnectorM12 connector

Boundary dimension 70×90×30mm（L×W×H)

Weight380g

Environmental conditions

Operating temperature﹣20…+50℃ /﹣30…70℃

Protection classIP67 / IP69K

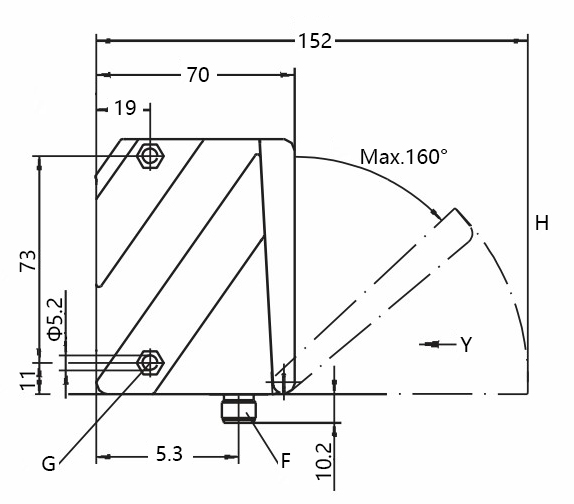

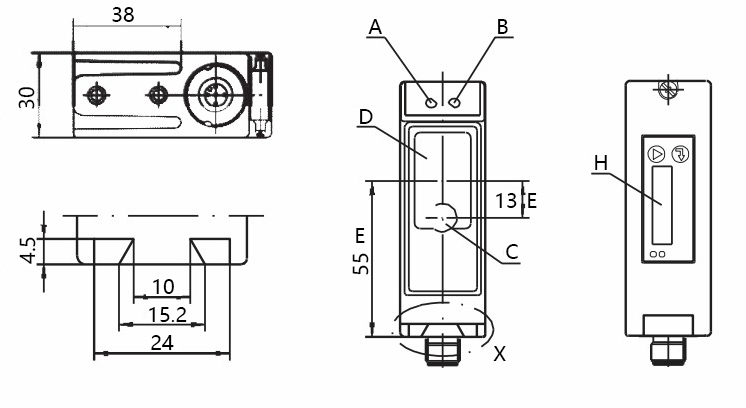

Overall dimensions

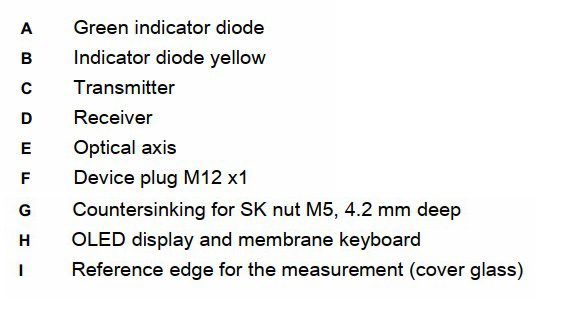

FD-LM 1.jpg 释义.jpg

FD-LM 2.jpg

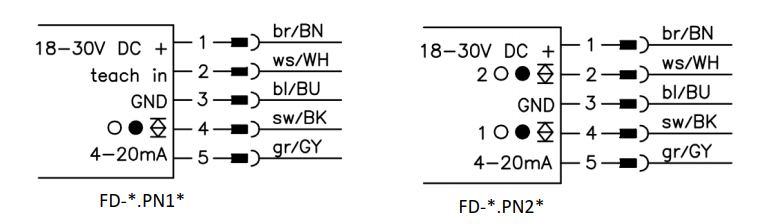

Wiring diagram
