FD100.50-60FX0

FD100.50-60FX0 pull wire solid shaft encoder, direct measurement of length and position.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Maximum range up to 60m

The signal output mode is push-pull output and RS422

High measurement accuracy

Structure of the solid

Long life

Basic parameters

Outside diameter58mm

Shaft diameterGeneral：6mm，10mm
Specific：6mm，8mm，10mm，12mm

Maximum speed of revolution50N/80N：6000 r；20N/30N：12000 r

Maximum shaft loadAxial/radial：50N / 80N

Starting torque＜2Ncm

Moment of inertia＜25gcm2

Electrical parameters

Power supply10…30VDC

Output singalRefer to the corresponding parameters of
incremental and absolute value 58 series
products

Resolution200/ single turn pulse number, 333.3/ single turn
pulse number , 491.5/single turn pulse
number

Connection typeConnector or cable connection

Mechanical parameters

Flange typeClamping flange/synchronous flange

MaterialsShell：AL；flange：AL；Shaft: stainless steel

WeightAbout 310g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

The main features of the cable boxShort range, medium range, long range optional,
extended type

Measuring range of wire drawing boxShort range：1m，2m，3m
Medium range：5m , 10m，15m , 20m，25m，
30m，40m

Effective length per revolution200mm，334.1mm，491.5mm optional

Pull wire materialStainless steel 316L

Cable box materialABS

End of drawstringThe ball line

Pull5…15N / 10…20N / 15…35N

Service lifeA million times

Environmental conditions

Operating temperature﹣30…+80℃

Storge temperature﹣40…+85℃

Protection classIP65

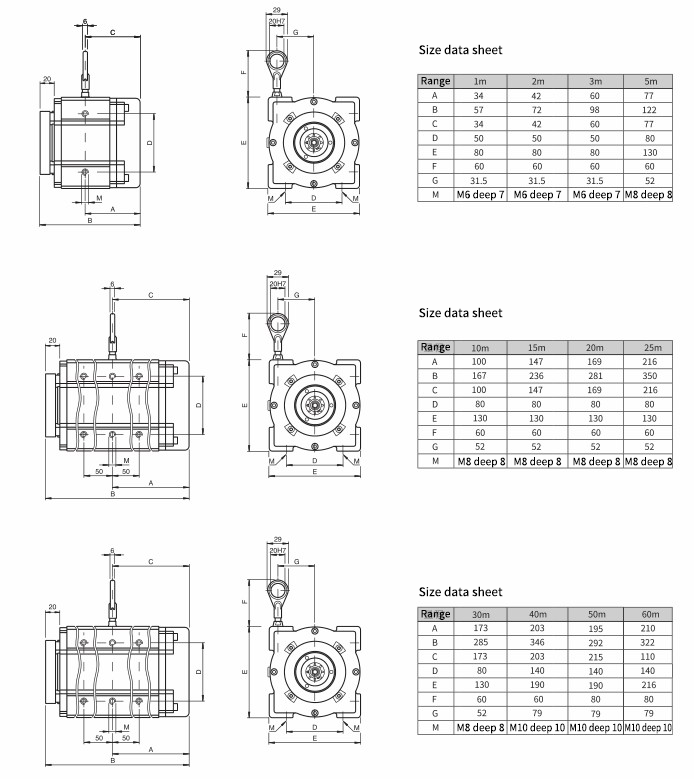

Overall dimensions
