FD100.31-58X0

FD100.31-58X0

FD100.31-58X0 incremental double output encoder, can be used in the field of servo motor, elevator, industrial robot, industrial automation control line, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Incremental solid shaft dual output encoder

General size, outer diameter of 58mm

Maximum resolution is 5000PPR

Signal output mode bit push-pull output and RS422

Protection class IP65

Short circuit protection

Basic parameters
Outside diameter58mm
Shaft diameter8mm，10mm，12mm
Maximum speed of revolution6000 r
Maximum shaft loadAxial/radial：50N / 110N
Starting torque＜2Ncm
Moment of inertia＜25gcm2
Electrical parameters
Power supply10…30VDC；5VDC
Output singalDual output：10…30VDC：Push-pull；5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution100 , 300 , 360 , 500 , 512 , 1000 , 1024 , 1200 ,
1500 , 1800 , 2048 , 2500 , 3600 , 4096 , 5000
Output frequencyMax 300KHz
Electrical interfaceCable connection：12×0.08mm2,1m
Connection：M23，12 pin
Mechanical parameters
Flange typeSpannflansche
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 830g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；300m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP65

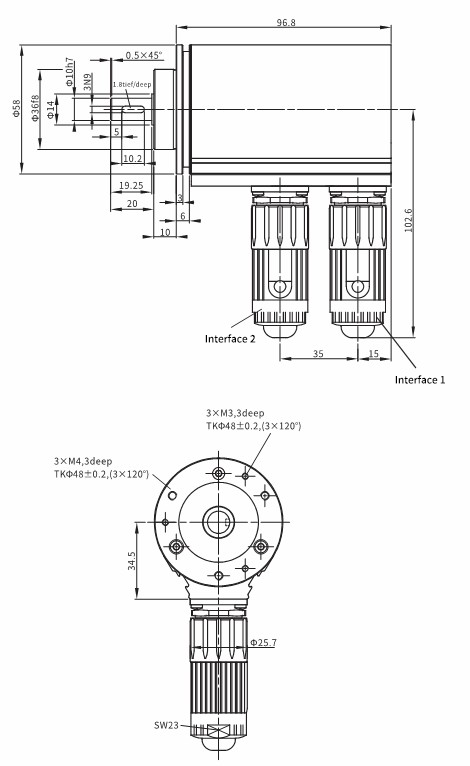

Overall dimensions

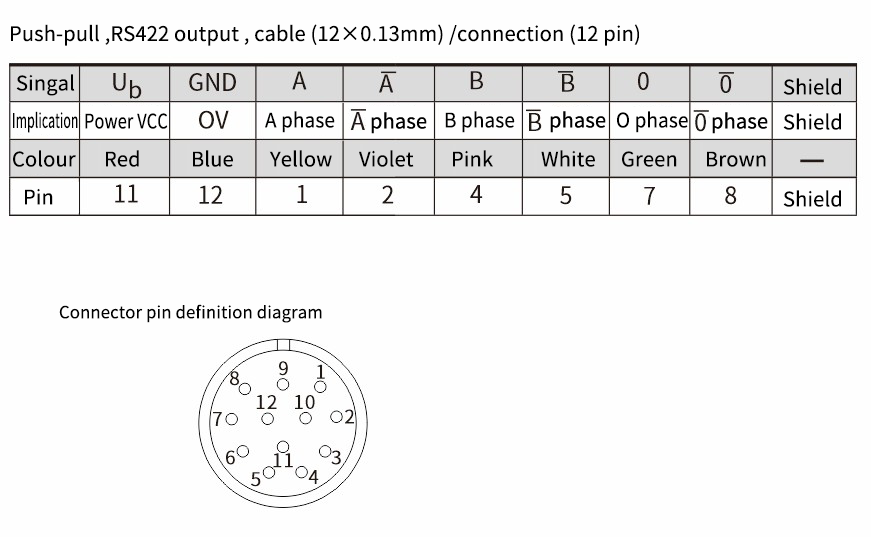

Wiring diagram
