FD100.31-58X00

FD100.31-58X00 absolute value double output encoder, can be used in the field of servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value solid shaft double output encoder

General size, outer diameter of 58mm

Resolution up to 30 bits

Signal output mode bit SSI output, double output

Short circuit protection, over voltage protection

Basic parameters

Outside diameter58mm

Shaft diameter8mm，10mm，12mm

Maximum speed of revolution6000 r

Maximum shaft loadAxial/radial：40N / 110N

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Out TypeRS422

Output codeBinary/Gray code

Working current＜40mA

Max Resolution15 in one lap（32768）；
15 in the number of laps（32768）

Output frequency0.1…2MBit/s

Count directionThe counting direction can be controlled by the
input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceCable connection：12×0.14mm2
Connection：M23，12 pin

Mechanical parameters

Flange typeSpannflansche / Synchronous flange

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 450g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65

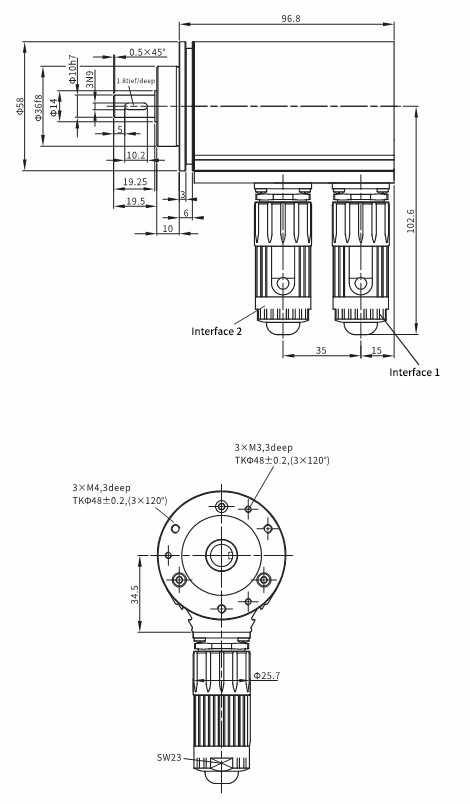

Overall dimensions

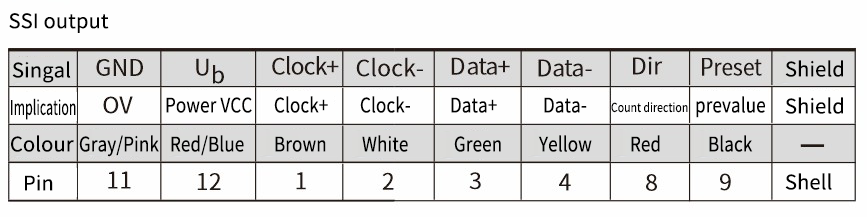

Wiring diagram
