FD100.32-58XX0

FD100.32-58XX0 heavy-duty absolute vibration encoder, suitable for rolling steel, casting and other high vibration heavy industry products.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Heavy duty absolute value solid shaft encoder

The general outer diameter size is 58mm

Strong vibration resistance, up to 4000Hz

Maximum axial load: axial 100N/ radial 150N

Signal output mode is SSI or other optional

Protection class IP67

Basic parameters

Outside diameter58mm

Shaft diameter6mm

Maximum speed of revolution12000 r

Maximum shaft loadAxial/radial：100N / 150N

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply10…30VDC；5VDC

Output singalSSI；PROFIBUS；CANopen，ETHERNET，Parallel
AS-interface，DeviceNet

Out TypeRefer to different protocols

Output codeBinary/Gray code

Working current＜350mA

Max Resolution15 in one lap（32768）；
15 in the number of laps（32768）

Output frequencyRefer to different protocols

Count directionRefer to each specification 58 products

Zero bit presetRefer to each specification 58 products

Electrical interfaceRefer to different protocols

Mechanical parameters

Flange typeSpannflansche /Synchronous flange

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 850g

Anti-VibrationIEC 68-2-6；300m/s² 10…4000HZ

Surge suppressionIEC 68-2-27；600m/s² 6ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

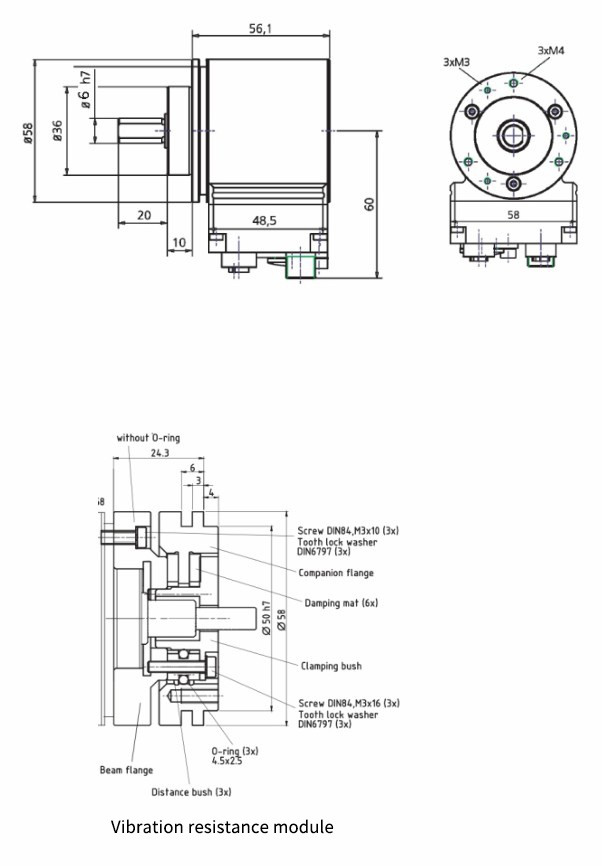

Overall dimensions
