FD100.40-70X0

FD100.40-70X0 specific solid shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

All stainless steel shell, acid and alkali corrosion resistance

Output shaft load is particularly large, axial/radial up to 110N/150N

The output pulse number can reach 5000 when it is normal, higher pulse number can be customized

The signal output mode is push-pull output or RS422 output

Flameproof enclosure design

Short circuit protection

Basic parameters

Outside diameter70mm

Shaft diameter10mm，12mm

Maximum speed of revolution5000 r

Maximum shaft loadAxial/radial：110N / 150N

Starting torque＜4Ncm

Moment of inertia＜320gcm2

Electrical parameters

Power supply10…30VDC；5VDC

Output singal10…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution1000 , 1024 , 2000 , 2048 , 3600 , 4096 , 5000

Output frequencyMax 300KHz

Electrical interfaceCable connection：5×0.08mm2，2m
Cable connection：8×0.08mm2，2m

Mechanical parameters

Flange typeSpannflansche

MaterialsShell：stainless steel；Flange：stainless steel；
Shaft: stainless steel

WeightAbout 1260g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣40…+70℃

Storge temperature﹣45…+85℃

Protection classIP67

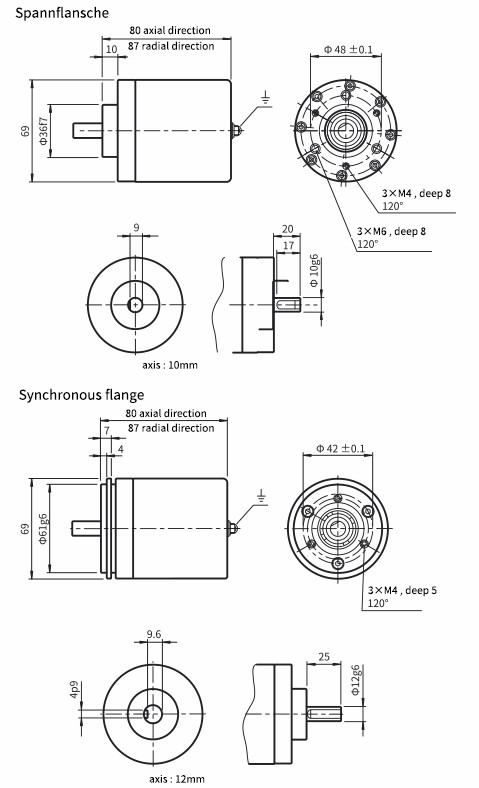

Overall dimensions

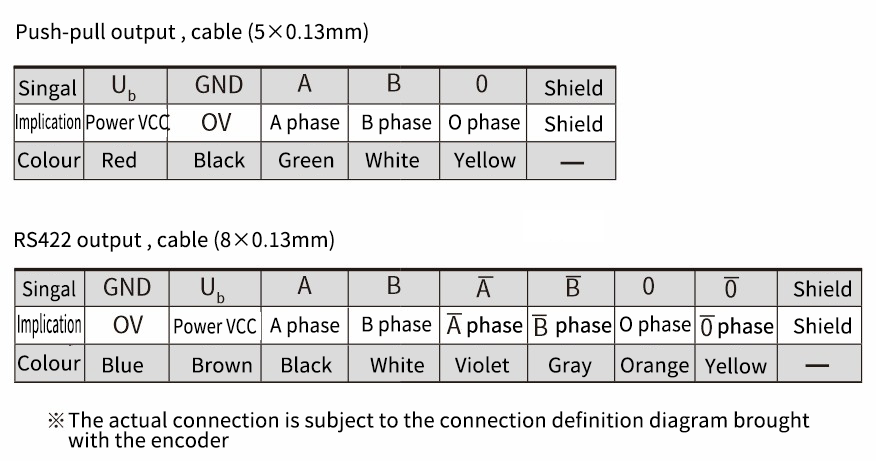

Wiring diagram
