PE-F1M4PL1

PE-F1M4PL1 thread reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Type screw M4

2m free cut

Parallel structure

L-shape

Bending radius R2

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationType screw M4

Structure typeParallel

ShapeL shape

Bending radiusR2

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：70；FINE：140；TURBO：220；
SUPER：320；ULTRA：420；MEGA：640

Mechanical parameters

Overall dimensions2m free cut（Φ1.3×2）

Environmental conditions

Operating temperature﹣40…+70℃

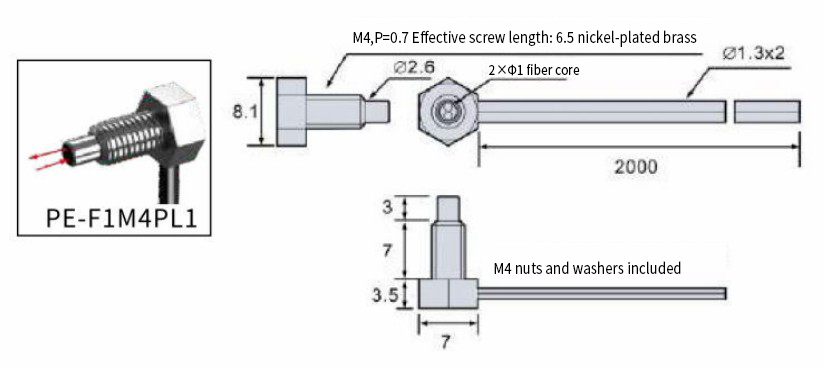

Overall dimensions
