PE-F1M6CL3

PE-F1M6CL3 thread reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Type screw M6

1m do not cut

Coaxial configuration

L-shape

Bending radius R10

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationType screw M6

Structure typeCoaxial

ShapeL shape

Bending radiusR10

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：32；FINE：70；TURBO：110；
SUPER：170；ULTRA：270；MEGA：400

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+70℃

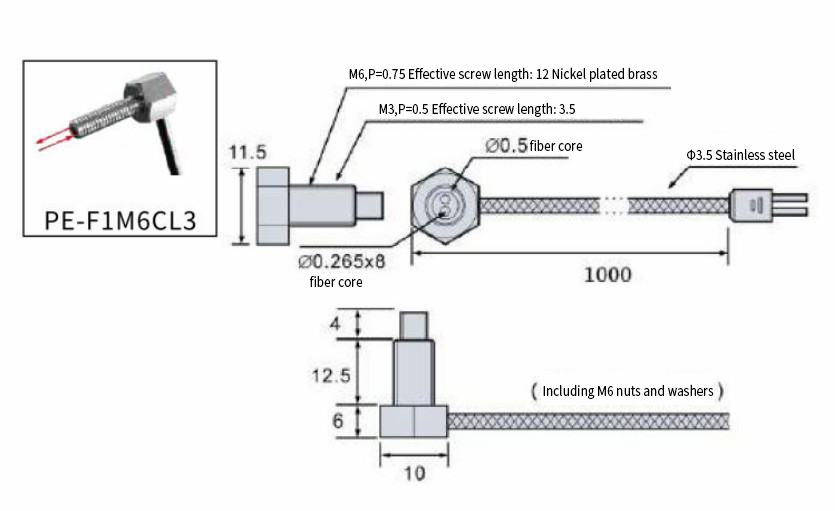

Overall dimensions
