PE-F1Z1C2

PE-F1Z1C2 smooth cylindrical reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Φ1.5 smooth cylindrical type

1m do not cut

Coaxial configuration

Straight shape

Bending radius R4

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationSmooth cylindrical Φ1.5

Structure typeCoaxial

ShapeStraight shape

Bending radiusR4

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：22；FINE：32；TURBO：54；
SUPER：80；ULTRA：100；MEGA：150

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+70℃

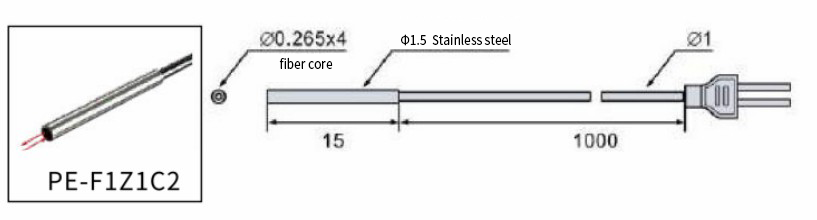

Overall dimensions
