PE-F1Z3C1

PE-F1Z3C1 smooth cylindrical reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Φ3 smooth cylindrical type

1m free cut

Coaxial configuration

Straight shape

Bending radius R2

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationSmooth cylindrical Φ3

Structure typeCoaxial

ShapeStraight shape

Bending radiusR2

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：13；FINE：40；TURBO：60；
SUPER：80；ULTRA：110；MEGA：140

Mechanical parameters

Overall dimensions1m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

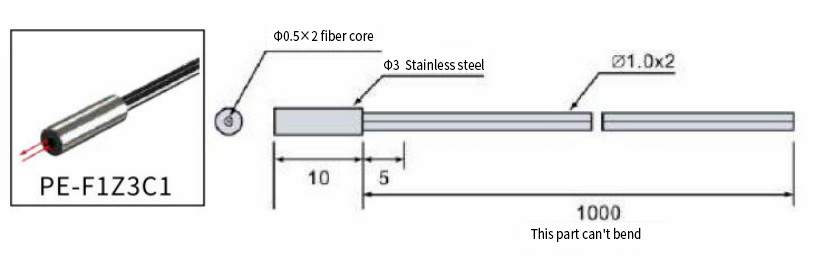

Overall dimensions
