PE-F1Z3C4

PE-F1Z3C4 smooth cylindrical reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Φ3 smooth cylindrical type

2m free cut

Coaxial configuration

Straight shape

Bending radius R25

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationSmooth cylindrical Φ3

Structure typeCoaxial

ShapeStraight shape

Bending radiusR25

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：140；FINE：300；TURBO：410；
SUPER：570；ULTRA：860；MEGA：1100

Mechanical parameters

Overall dimensions2m free cut（Φ1.3×2）

Environmental conditions

Operating temperature﹣40…+70℃

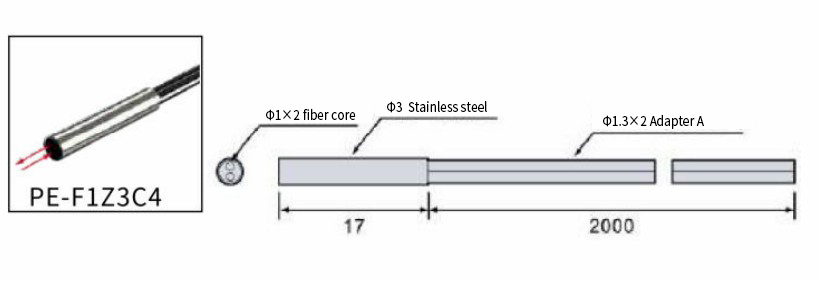

Overall dimensions
