PE-F2T1P4

PE-F2T1P4 qualified reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Restricted reflection type

2m free cut

Top view

Bending radius R25

Basic parameters

Fiber optic componentsRestricted reflection type

TypeTop view

Bending radiusR25

Spot diameter——

Detection distanceHSP：-；FINE：15...30；TURBO：15...38；
SUPER: 15...46；ULTRA: 15...60；MEGA: 15...70

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

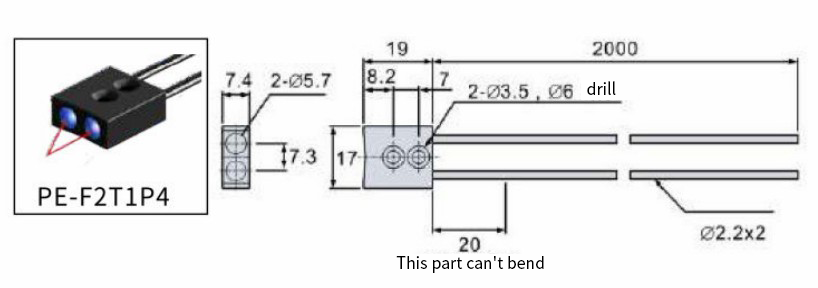

Overall dimensions
