PE-F2S1P3

PE-F2S1P3 qualified reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Restricted reflection type

2m free cut

Side view

Bending radius R10

Basic parameters

Fiber optic componentsRestricted reflection type

TypeSide view

Bending radiusR10

Spot diameterAbout 4.5 × about 3.5（Distance is 3）

Detection distanceHSP：3 center of detection range；
FINE：3 center of detection range；
TURBO：3 center of detection range；
SUPER: 3 center of detection range；
ULTRA: 3 center of detection range ;
MEGA: 3 center of detection range

Mechanical parameters

Overall dimensions2m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

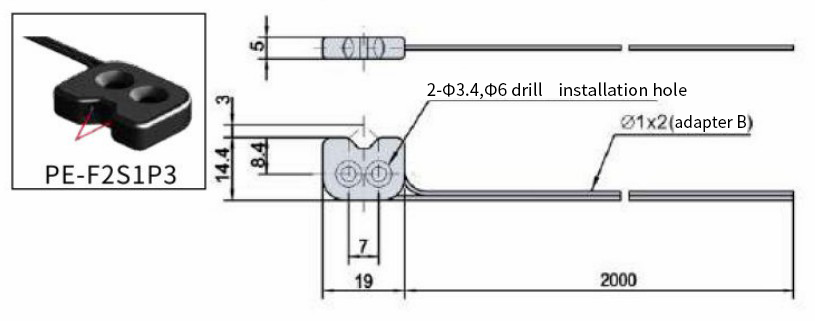

Overall dimensions
