PE-F2H1P2

PE-F2H1P2 qualified reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Restricted reflection type

2m free cut

Panel

Bending radius R5

Basic parameters

Fiber optic componentsRestricted reflection type

TypePanel

Bending radiusR5

Spot diameter——

Detection distanceHSP：-；FINE：0...25；TURBO：0...25；
SUPER: 0...25；ULTRA: 0...25 ; MEGA: 0...25

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

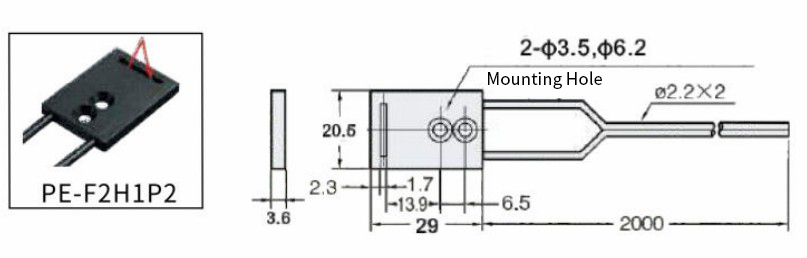

Overall dimensions
