PE-F2H1P3

PE-F2H1P3 qualified reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Restricted reflection type

2m free cut

Panel

Bending radius R10

Basic parameters

Fiber optic componentsRestricted reflection type

TypePanel

Bending radiusR10

Spot diameterAbout Φ1.5（Distance is 6）

Detection distanceHSP：6 center of detection range；
FINE：6 center of detection range；
TURBO：6 center of detection range；
SUPER: 6 center of detection range；
ULTRA: 6 center of detection range ;
MEGA: 6 center of detection range

Mechanical parameters

Overall dimensions2m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

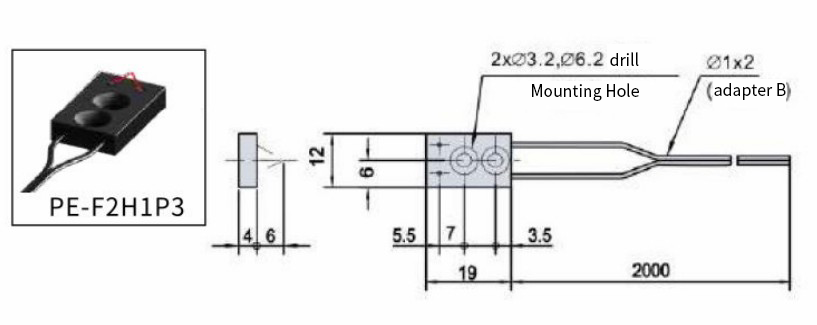

Overall dimensions
