PE-F2H2P4

PE-F2H2P4 qualified reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Restricted reflection type

2m free cut

Panel

Bending radius R25

Basic parameters

Fiber optic componentsRestricted reflection type

TypePanel

Bending radiusR25

Spot diameter——

Detection distanceHSP：10...26；FINE：8...32；TURBO：8...34；
SUPER: 8...35；ULTRA: 8...36 ; MEGA: 8...38

Mechanical parameters

Overall dimensions2m free cut（Φ2.2×2）

Environmental conditions

Operating temperature﹣40…+70℃

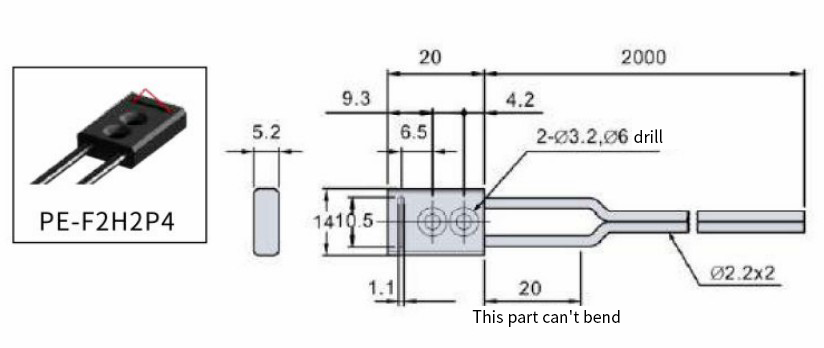

Overall dimensions
