PE-F3T1P1

PE-F3T1P1 space-saving reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Space saving type

1m free cut

Top view

Bending radius R2

Basic parameters

Fiber optic componentsSpace saving reflective type

TypeTop view

Bending radiusR2

Detection distanceHSP：1...13；FINE：1...36；TURBO：1...60;
SUPER：1...81；ULTRA：1...120；MEGA：1...160

Mechanical parameters

Overall dimensions1m free cut（Φ1.0×2）

Environmental conditions

Operating temperature﹣40…+70℃

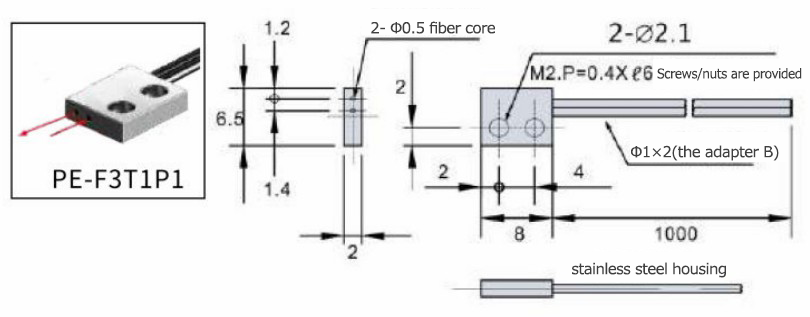

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
