PE-F3H1P1

PE-F3H1P1 space-saving reflective fiber element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Space saving type

1m free cut

Panel

Bending radius R2

Basic parameters

Fiber optic componentsSpace saving reflective type

TypePanel

Bending radiusR2

Detection distanceHSP：2...8；FINE：2...24；TURBO：2…32;
SUPER：2...50；ULTRA：2...77；MEGA：2...120

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

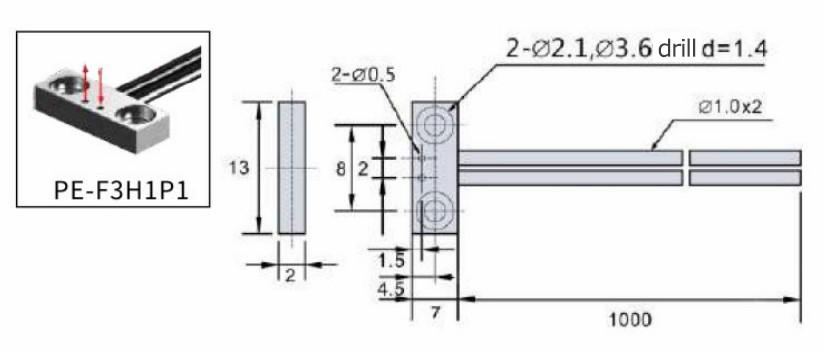

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
