FD-LS

FD-LS

FD-LS high precision laser ranging sensor can be used to measure fixed or moving objects.Often used for stacking position detection, detection between objects, object positioning detection, etc.
Type of sample：FD-LS2-PN2IM12.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

The measurement resolution is up to 0.03mm

Using a visible beam makes it easy to target the object under test

Light on and dark on can be set

The operating voltage range is large and can vary from 18V to 30V

With switching output and analog output

Alarm distance range can be set

Basic parameters
Measurement range25…45mm / 20…200mm / 20…500mm
Resolution ratio0.03mm / 0.1…0.2mm / 0.1…0.5mm
Measurement accuracy 0.015mm / 0.02mm / 0.02mm
Repeatability0.2% / 1% / 1%
Spot diameter1×6mm2
Electrical parameters
Power supply18…30VDC
Digital outputPush-pull output
Analog output4…20mA / 0…10V
Mechanical parameters
Shell materialAL
Boundary dimension 38×15×48mm（L×W×H）
Weight70g
Environmental conditions
Operating temperature﹣20…+50℃
Protection classIP67

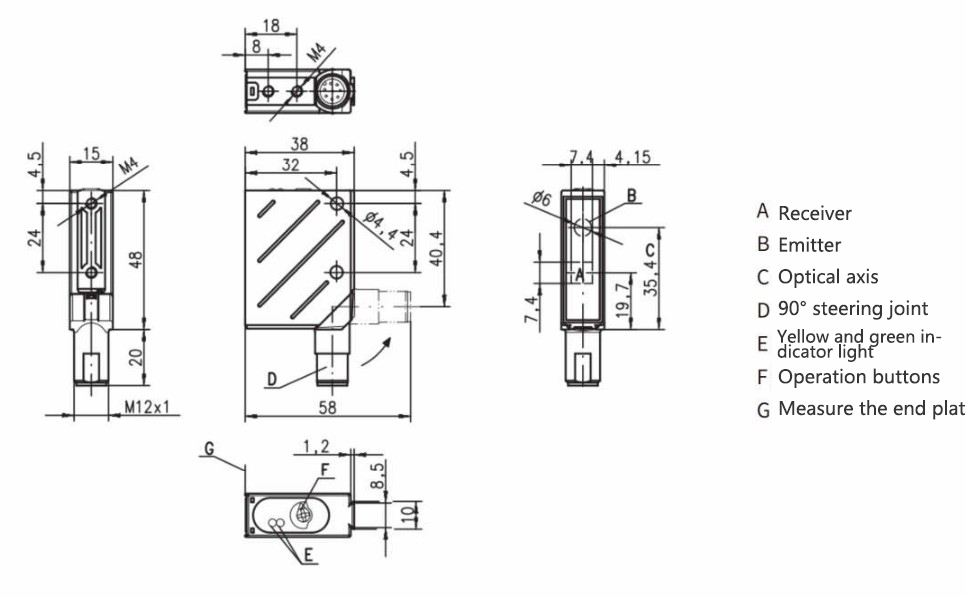

Overall dimensions



Wiring diagram
