PE-C1M4SL1

PE-C1M4SL1 fiber optic element with shot thread.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Thread the M4

2m free cut

L shape

Bending radius R2

The diameter of optical axis is Φ1.11

Basic parameters

Fiber optic componentsScrew type Trough beam

SpecificationM4

ShapeL shape

Bending radiusR2

Optical axis diameterΦ1.11

Detection distanceHSP：320；FINE：640；TURBO：880；
SUPER：1300；ULTRA：2100；MEGA：3100

Mechanical parameters

Overall dimensions2m free cut（Φ2.2）

Environmental conditions

Operating temperature﹣40…+70℃

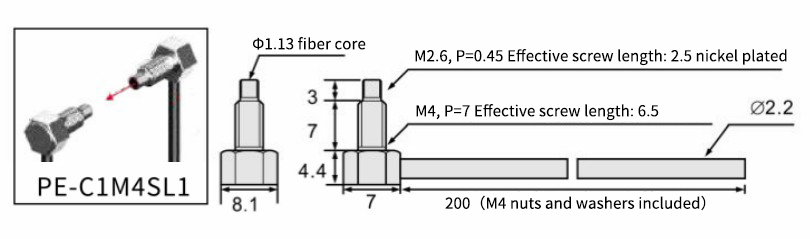

Overall dimensions
