FD-HTD1

FD-HTD1 type a pyrometer can be used to detect the temperature of various cold and hot metals. It is especially suitable for the measurement of small targets, the site is not very bad working conditions and the output signal is analog.
Type of sample：FD-HTD1LT-SA1P.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Monochrome detection mode, good economy

Temperature measurement range is 0...1600℃

The optical resolution can reach 300:1

With laser aiming

Optional air / water cooling protective sleeve

4...20mA output signal

Basic parameters

Temperature range﹣40…1200℃

Accuracy≤±1%F.S/±1.5℃ take a big value
≤±(0.5%F.S+2℃)

Resolution ratio0.5℃

Response time150ms

Optical resolutionLT: 50:1 MT1: 30:1

Spectral response8…14μm

Electrical parameters

Power supply24VDC±20%，300mA

Output 4…20mA

Mechanical parameters

Overall dimensions110×59×59mm（L×W×H）

Weight0.2Kg (with water jacket up to 0.5Kg）

Environmental conditions

Operating temperature0...70℃（with water jacket up to 150℃）

Protection classIP65（with water jacket up to IP67）

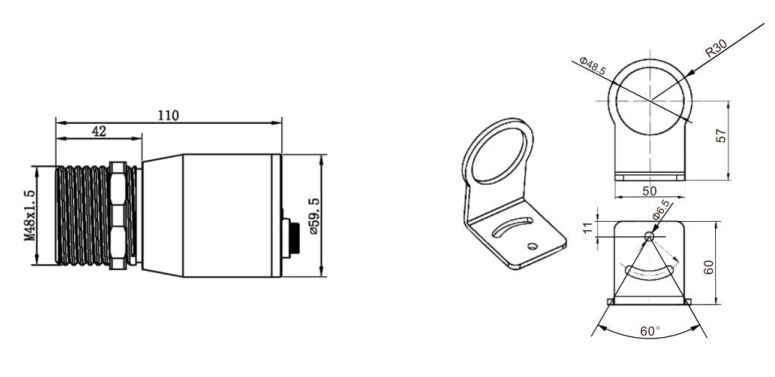

Overall dimensions


Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate
