PE-C1M4S1A

PE-C1M4S1A fiber optic element with shot thread.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Thread the M4

2m free cut

Straight shape

Bending radius R2

The diameter of optical axis is Φ1.11

Basic parameters

Fiber optic componentsScrew type Trough beam

SpecificationM4

ShapeStraight shape

Bending radiusR2

Optical axis diameterΦ1.11

Detection distanceHSP：430；FINE：880；TURBO：1300；
SUPER：1800；ULTRA：3000；MEGA：3600

Mechanical parameters

Overall dimensions2m free cut（Φ2.2）

Environmental conditions

Operating temperature﹣40…+70℃

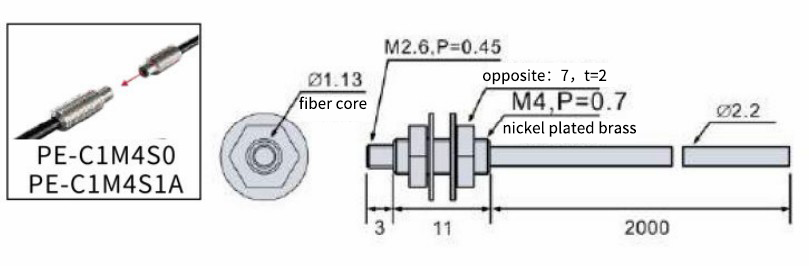

Overall dimensions
