PE-C1M4S3

PE-C1M4S3 fiber optic element with shot thread.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Thread the M4

1m do not cut

Straight shape

Bending radius R10

The diameter of optical axis is Φ1.11

Basic parameters

Fiber optic componentsScrew type Trough beam

SpecificationM4

ShapeStraight shape

Bending radiusR10

Optical axis diameterΦ1.11

Detection distanceHSP：430；FINE：880；TURBO：1300；
SUPER：1800；ULTRA：1800；MEGA：1800

Mechanical parameters

Overall dimensions1m do not cut

Environmental conditions

Operating temperature﹣40…+70℃

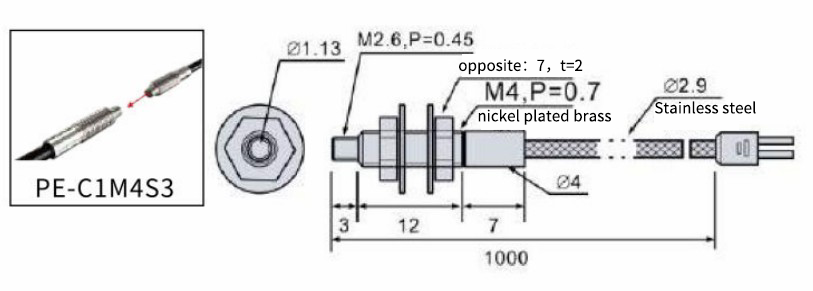

Overall dimensions
