PE-C1Z1S3

PE-C1Z1S3 cylindrical beam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Cylindrical Φ1

50cm free cut

Bending radius R10

The diameter of optical axis is Φ0.265

Basic parameters

Fiber optic componentsCylinder Trough beam

SpecificationΦ1

Bending radiusR10

Optical axis diameterΦ0.265

Detection distanceHSP：40；FINE：55；TURBO：120；
SUPER：180；ULTRA：270；MEGA：380

Mechanical parameters

Overall dimensions50cm free cut

Environmental conditions

Operating temperature﹣40…+70℃

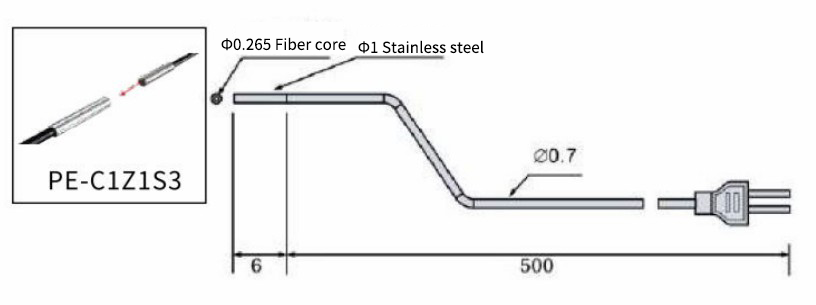

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
