PE-C1Z1S1A

PE-C1Z1S1A cylindrical beam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Cylindrical Φ1.5

1m free cut

Bending radius R2, resistant to twists and high elasticity

The diameter of optical axis is Φ0.5

Basic parameters

Fiber optic componentsCylinder Trough beam

SpecificationΦ1.5

Bending radiusR2 resistance to twists and turns, high elasticity

Optical axis diameterΦ0.5

Detection distanceHSP：55；FINE：140；TURBO：180；
SUPER：300；ULTRA：430；MEGA：590

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

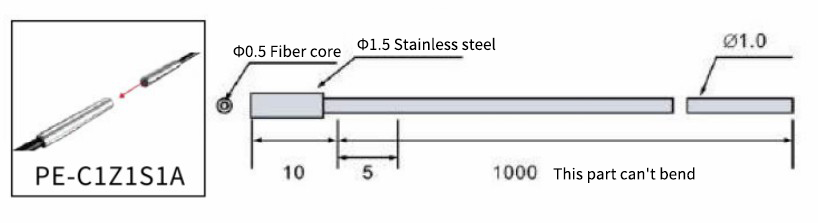

Overall dimensions
