FD-HTD2

FD-HTD2 pyrometer can be used to detect the temperature of various cold and hot metals.It is especially suitable for the measurement of small targets, the site is not very bad working conditions and the output signal is analog.
Type of sample：FD-HTD2LT-SA12P6.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Monochrome detection mode, good economy

The temperature measurement range is - 40...2300℃

Generally used for plate detection of profiles

Multiple temperature range options

Optional air / water cooling protective sleeve

Various analog output modes are available

Basic parameters

Temperature range﹣40…2300℃

Accuracy≤±1%F.S or ±1.0℃ take a big value
≤±(0.5%F.S+2℃)

Resolution ratio0.1℃

Response timeLT / MT1 / MT2 / MT3 : 150ms
MT4 / MT5: 10ms

Optical resolutionLT: 70:1 MT1: 33:1 MT2: 70:1 MT3: 60:1
MT4 / MT5: 150:1

Spectral responseLT1: 8…14μm
MT1 / MT2: 3.9μm MT3: 2.2μm
MT4: 1.6μm MT5: 1.0μm

Electrical parameters

Power supply24VDC±20%，500mA

Output 4…20mA , 0…20mA

Mechanical parameters

Overall dimensions170×42×42mm（L×W×H）

Weight0.3Kg (with water jacket up to 0.8Kg）

Environmental conditions

Operating temperature﹣20…65℃（with water jacket up to 170℃）

Protection classIP65（with water jacket up to IP67）

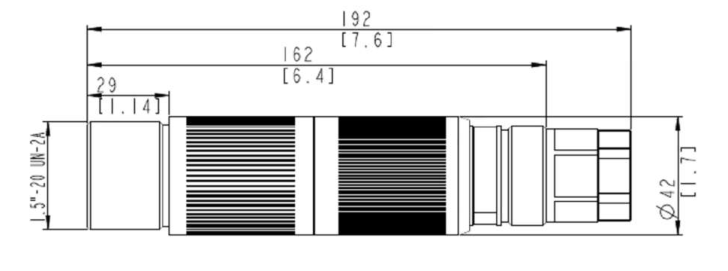

Overall dimensions


Wiring diagram
