PE-C1Z1S2A

PE-C1Z1S2A cylindrical beam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Cylindrical Φ1.5

1m free cut

Bending radius R4，high elasticity

The diameter of optical axis is Φ0.7

Basic parameters

Fiber optic componentsCylinder Trough beam

SpecificationΦ1.5

Bending radiusR4 high elastic

Optical axis diameterΦ0.7

Detection distanceHSP：130；FINE：230；TURBO：410；
SUPER：590；ULTRA：810；MEGA：1200

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

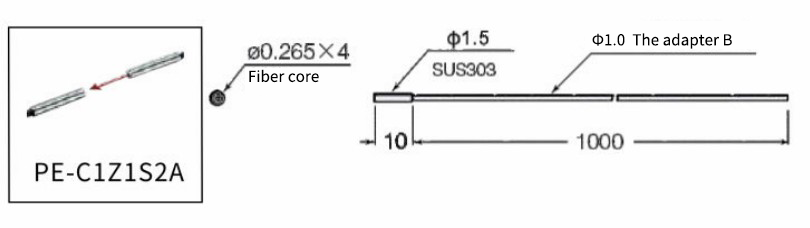

Overall dimensions
