PE-C1Z3S4

PE-C1Z3S4 cylindrical beam optical fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Cylindrical Φ3

2m free cut

Bending radius R25

The diameter of optical axis is Φ1.0

Basic parameters

Fiber optic componentsCylinder Trough beam

SpecificationΦ3

Bending radiusR25

Optical axis diameterΦ1.0

Detection distanceHSP：540；FINE：1100；TURBO：1500；
SUPER：2200；ULTRA：3200；MEGA：3600

Mechanical parameters

Overall dimensions2m free cut（Φ2.2）

Environmental conditions

Operating temperature﹣40…+70℃

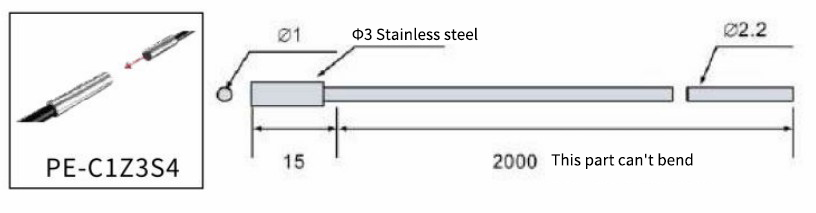

Overall dimensions


Brochures

Manuals

CAD/CAE

Certificate
