PE-C3H1S0

PE-C3H1S0 space-saving type of laser fiber element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Space saving type

1m free cut

Panel

Bending radius R2, resistance to twists and turns

The diameter of the optical axis is Φ0.5

Basic parameters

Fiber optic componentsSpace saving type Trough beam

TypePanel

Bending radiusR2 tortuous

Optical axis diameterΦ0.5

Detection distanceHSP：80；FINE：140；TURBO：180；
SUPER：230；ULTRA：340；MEGA：500

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

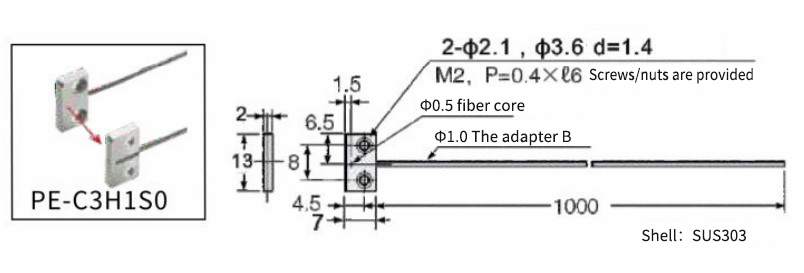

Overall dimensions
