PE-C1Z1S1A

PE-C1Z1S1A fiber optic element with high elasticity.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High elastic type

1m free cut

Φ 1.5

Bending radius R2

The diameter of optical axis is Φ0.5

Basic parameters

Fiber optic componentsCylinder Trough beam

SpecificationΦ1.5

Bending radiusR2 resistance to twists and turns, high elasticity

Optical axis diameterΦ0.5

Detection distanceHSP：55；FINE：140；TURBO：180；
SUPER：300；ULTRA：430；MEGA：590

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

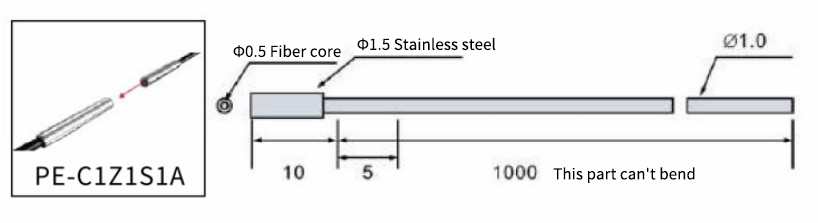

Overall dimensions
