PE-C1M4S1

PE-C1M4S1 fiber optic element with high elasticity.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High elastic type

1m free cut

Bending radius R2

The diameter of optical axis is Φ2.3

Basic parameters

Fiber optic componentsHigh elastic type Trough beam

SpecificationM4

Bending radiusR2

Optical axis diameterΦ2.3

Detection distanceHSP：370；FINE：850；TURBO：1200；
SUPER：1800；ULTRA：1800；MEGA：1800

Mechanical parameters

Overall dimensions1m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

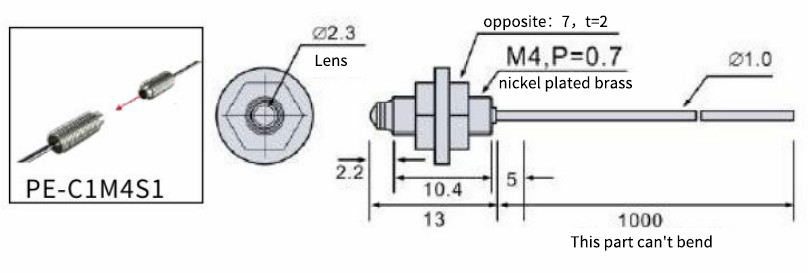

Overall dimensions
