PE-C3S1S2

PE-C3S1S2 fiber optic element with high elasticity.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High elastic type

2m free cut

Side view

Bending radius R4

The diameter of optical axis is Φ0.7

Basic parameters

Fiber optic componentsHigh elastic type Trough beam

SpecificationSide view

Bending radiusR4

Optical axis diameterΦ0.7

Detection distanceHSP：65；FINE：110；TURBO：180；
SUPER：290；ULTRA：490；MEGA：630

Mechanical parameters

Overall dimensions2m free cut（Φ1.0）

Environmental conditions

Operating temperature﹣40…+70℃

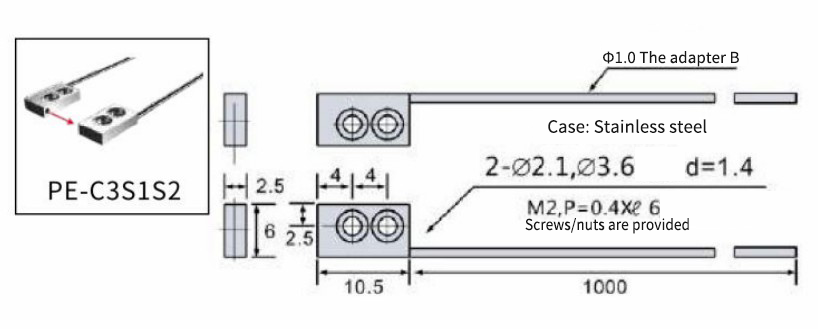

Overall dimensions
