PE-C4Z2S4

PE-C4Z2S4 probe-on-beam fiber optic element.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The probe type

1m free cut

Φ 2.5

Side view

Bending radius R25

The diameter of optical axis is Φ0.6

Basic parameters

Fiber optic componentsThe probe type Trough beam

SpecificationΦ2.5

TypeSide view

Bending radiusR25

Optical axis diameterΦ0.6

Detection distanceHSP：55；FINE：100；TURBO：160；
SUPER：230；ULTRA：380；MEGA：520

Mechanical parameters

Overall dimensions1m free cut（Φ1.3）

Environmental conditions

Operating temperature﹣40…+70℃

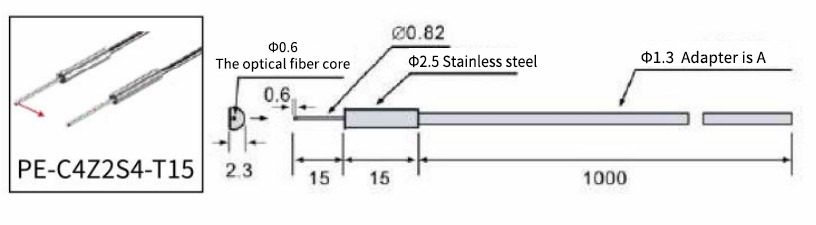

Overall dimensions
