PQ02L very small photoelectric switch, can be used in packaging, logistics, machinery manufacturing and other fields.
Red laser light source, accurate measurement
The appearance size is very small, the spot is very small. The diffuse reflection type is only 1mm (at 300mm)
The minimum diameter of the wire can reach 0.01mm
The response time is very small, less than 0.5ms
With sensitivity adjustment knob, you can set the measurement distance
With light on/dark on setting knob
With action signal output indicator and laser status indicator
PNP and NPN output signals are optional

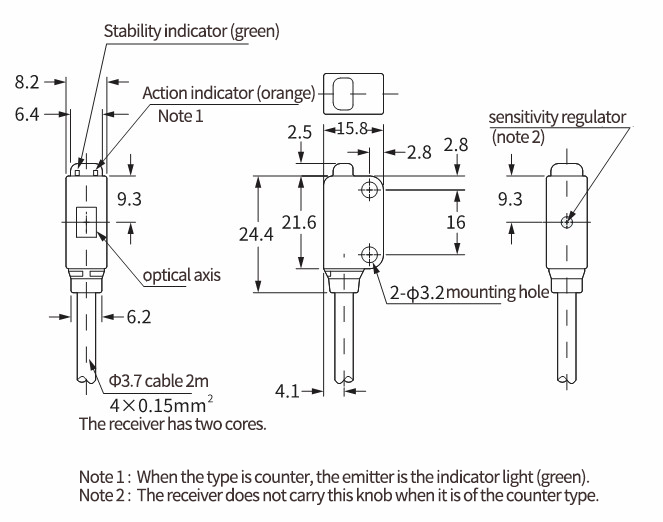

Overall dimensions

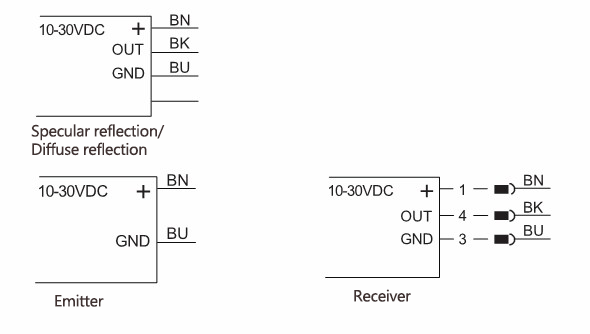

Wiring diagram
Standard reflector
The mirror is made of acrylic and the base is made of ABS
Using reflector, the detection distance is 4m
