PN6

PN6 photoelectric switch with long detection distance can be used in packaging, logistics, machinery manufacturing and other fields.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

DC power supply (10...30 V DC)

Use visible red LED

Induction distance adjustment knob

Action mode switch can be toggled

The detection distance is far, up to 15 m

With signal output indicator light

Basic parameters

detection distance0…10m

Detection limit range0…15m

Light sourceLED red

LED light wavelength620nm

Transmitted signal waveformPulse

Switching frequency500Hz

Response time1ms

Delay time300ms

Electrical parameters

Working voltage 10…30VDC

Residual corrugations0…15%，from Ub

Open circuit current0…20mA

Digital switch output numberTwo beams of light

Voltage typeDC

Maximum switching current100mA

Switching voltageLow：≤2.0V high：≥（Ub-2.0V)

Switch output 1Transistor，PNP，light on

Switch output 2Transistor，PNP，dark on

Protection circuitReverse polarity protection, short circuit protection

Mechanical parameters

DesignDouble section circle

ThreadspecificationM18×1mm

Size（D×L)18mm×46mm

Shell materialPlastic，PC-ABS

Lens cover materialPlastic

Net weight70g

Shell colorRed

Connecting cable2m PUR，black，4×0.2mm²

Environmental conditions

Operating temperature (ambient)﹣40…+60℃

Storage temperature (ambient)﹣40…+70℃

Protection classIP67

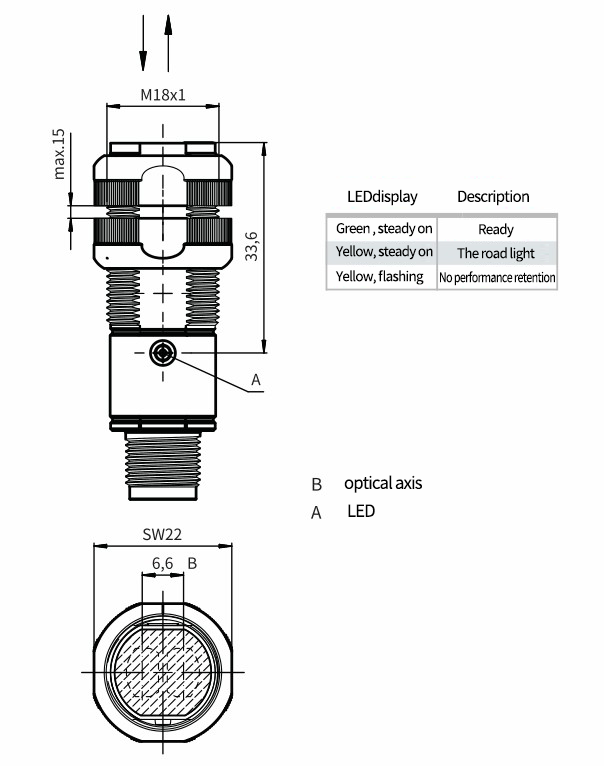

Overall dimensions

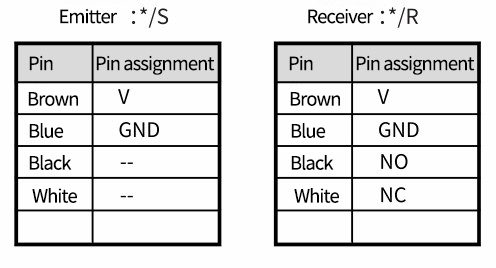

Wiring diagram
