FD20.10 compact tuning fork level meter, suitable for small containers or small tanks and other occasions with small space. It can be widely used in petrochemical, metallurgy,
light industry, building materials and other industries to alarm and control the upper/lower limit position of liquid level.
Type of sample：FD20.10-0ES1100.200.*
Compact structure, hawsman plug out, suitable for small space occasions
Can be mounted top or side
Fork body can be standard and short and small
Not affected by flow, turbulence, bubble, foam, vibration and other product characteristics
Full electronic circuit design, no maintenance after operation
The process pressure can reach 2MPa
The process temperature can reach 150℃

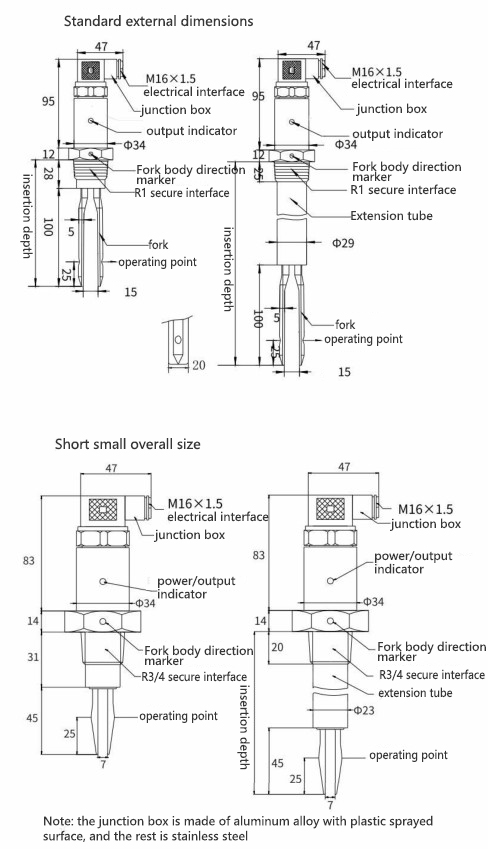

Overall dimensions

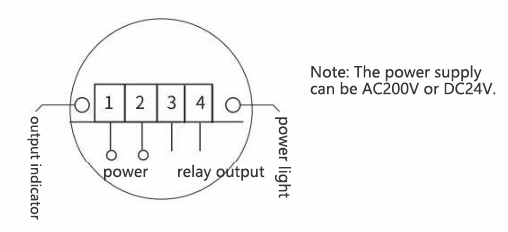

Wiring diagram
