FD20.20 tuning fork level switch, used to detect liquids and powders (long fork type), widely used in petrochemical, metallurgy, light industry, building materials and other industries, the upper/lower level alarm or control of liquid level.
Type of sample：FD20.20-0E1100.200.*
Standard aluminum housing, simple wiring, wide application
Can be mounted top or side
Fork body can be standard, short small and long fork
Can measure liquid, long fork can measure powder
Not affected by flow, turbulence, bubble, foam, vibration and other product characteristics
Full electronic circuit design, no maintenance after operation
The process pressure can reach 2MPa
The process temperature can reach 150℃

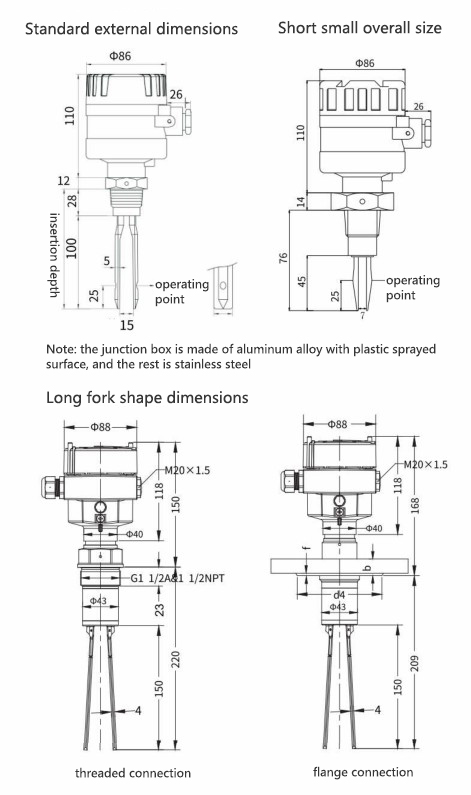

Overall dimensions

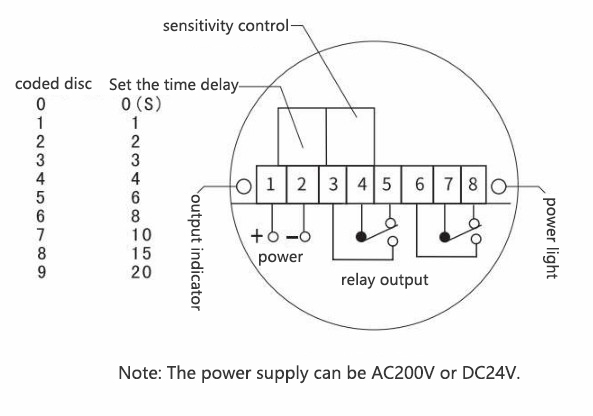

Wiring diagram
