FD20.30 vibrating rod level switch, especially suitable for measuring solid particles or dust, dust and other material level detection.Widely used in petrochemical, metallurgy, light industry, building materials and other industries to carry out upper/lower level alarm and control.
Type of sample：FD20.30-0E1100.200.*
Compact and can be mounted on top or side
Standard and reinforced (double rod construction) available
It can effectively prevent material hanging and clamping
Solid particles or dust level can be measured
The process pressure can reach 2MPa
The process temperature can reach 400℃

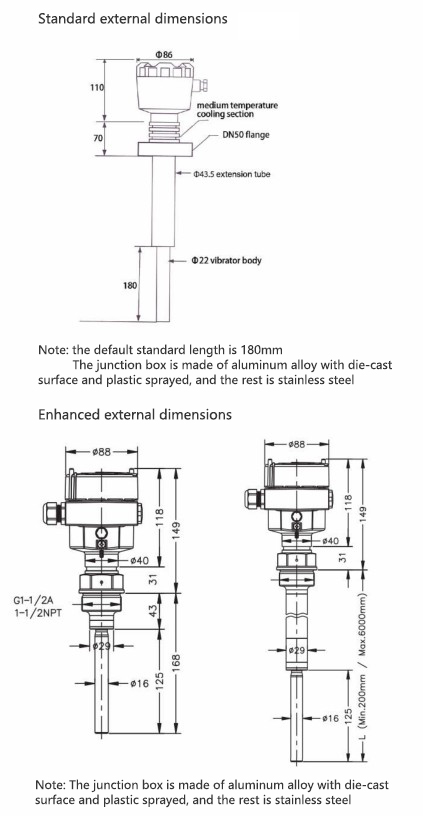

Overall dimensions

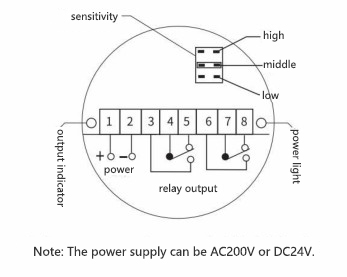

Wiring diagram
