FD31.10

FD31.10 is a multi-channel measuring display and arithmetic unit using modular technology. It can measure up to 3 channels and 2 lines current signals.
Type of sample：FD31.10-104AT.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Level gauge remote display instrument

Power supply voltage AC 220V

When measuring three channels, you can define the channel number

With fixed point/automatic circuit measurement display function

With input digital correction and digital filtering function

Basic parameters

TypeIndicator

Response time≤1.5s（When the digital filtering parameter is
set to 0 or 1）

Automatic inspection intervalApproximately 1.2s or 2s is optional

Electrical parameters

working voltageAC 100...220V

The input specificationsTwo wire system transmitter input direct
connection 4...20mA , two-wire transmitter with
output and 24V internal supply

The power consumption≤6W

Mechanical parameters

Display panel96×96mm

Environmental conditions

Environment﹣10…+60℃，humidity≤90%RH

Protection classIP65

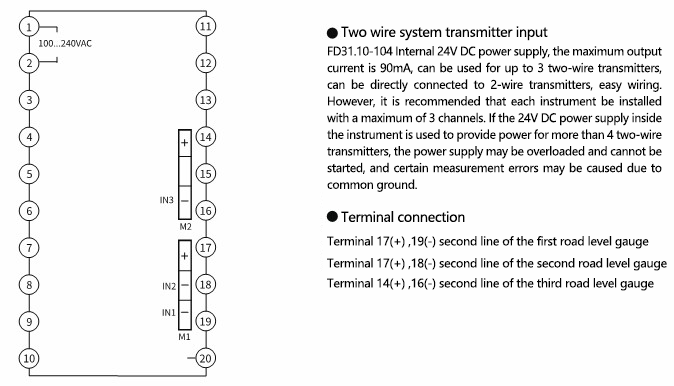

Wiring diagram
