FD-HMD400 thermal metal detector is specially designed for 300℃...1300℃ hot metal detection .It is often used for position monitoring of continuous casting line, hot rolling mill, plate mill, rod and wire etc.
Type of sample：FD-HMD400-R1C1.*
High sensitivity adjustable, minimum target temperature 270℃
TEST Enables remote self-test
Digital tube temperature setting, instrument action gate value is adjustable, multi-color LED array infrared signal output indication
Ac/DC power supply Optional
1°×25° Detection Angle
A variety of digital output, 1ms response time, output delay 1...250ms can be set
Optional aviation and heavy duty connectors
Laser aiming to assist the adjustment of installation orientation
Suitable for dusty, steam environment
Sturdy IP65 aluminum case with water cooling

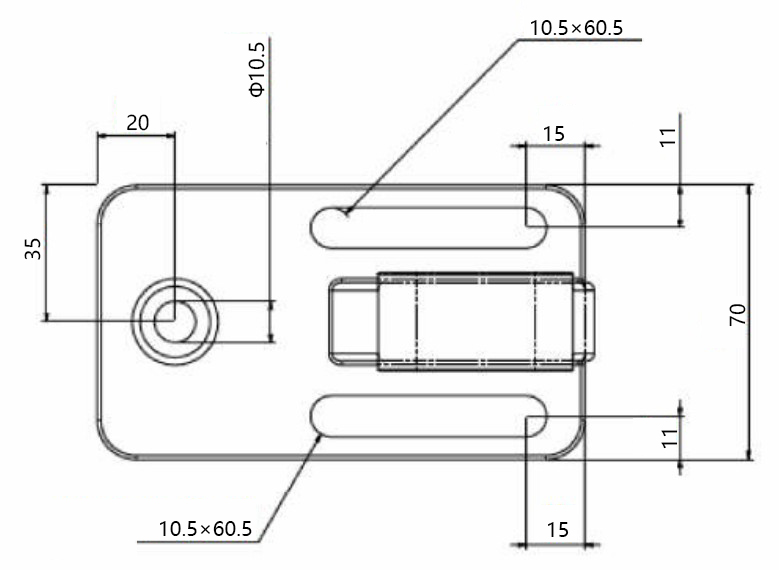

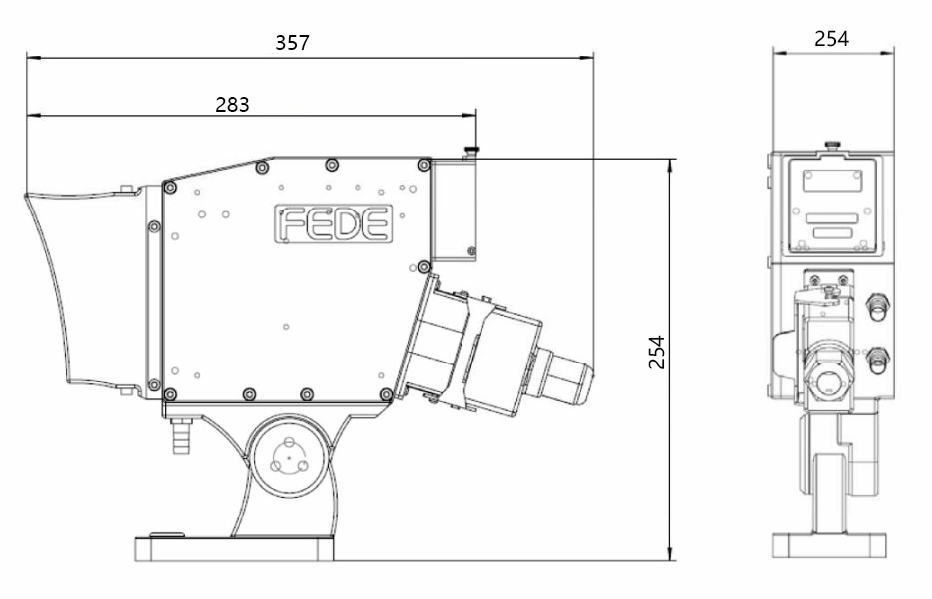

Overall dimensions

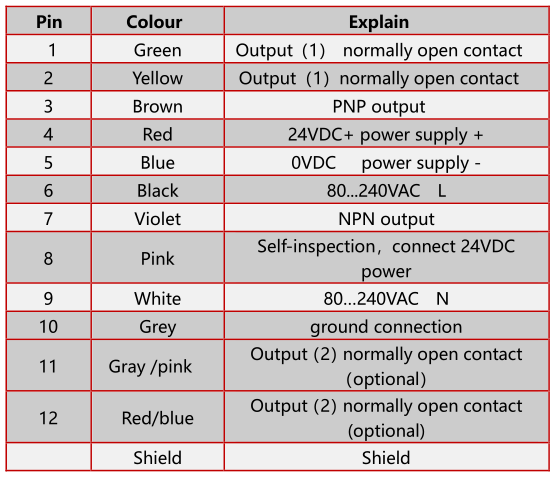

Wiring diagram
