FD30G.30

FD30G.30 double cable level meter is mainly used for the measurement of solid powder and low dielectric constant liquid.
Type of sample：FD30G.30-1113.1000.10010.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Double cable probe

Accuracy ± 3mm, resolution 1mm

Measurement range 0...30m

It is suitable for measuring liquid and solid powders with low dielectric constant

The process pressure can reach 2.0MPa

The process temperature can reach 250 ℃

Not affected by noise, steam, dust, vacuum, etc

It is not affected by the change of medium density and temperature

Basic parameters

Measuring range30m

Accuracy±3mm

Repeatability±2mm

Resolution ratio1mm

Frequency range100MHz…1.8GHz

Electrical parameters

The power supply 24VDC（±10%）

Singal output4…20mA / HART (two wire）

Mechanical parameters

The probe materialStainless steel 316

Process connectionThread、the flange

Electrical interfaceTwo M20×1.5 or two NPT1/2

Environmental conditions

Medium temperature﹣40…+250℃

Process pressure﹣0.1…2.0MPa

Enclosure protectionIP67

Explosion-proof gradeExia II CT6

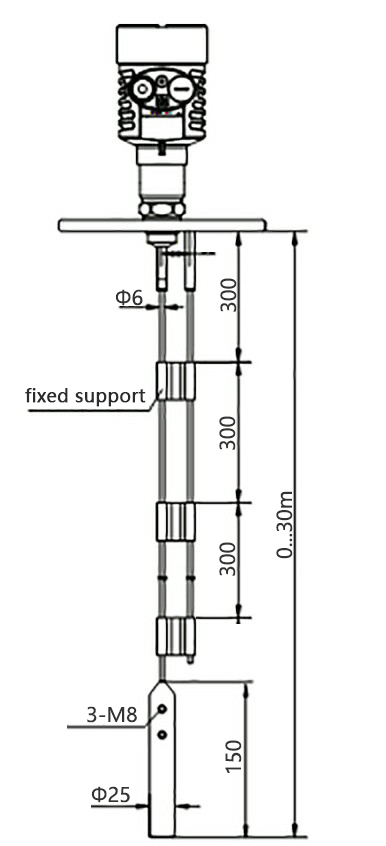

Overall dimensions



Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate
