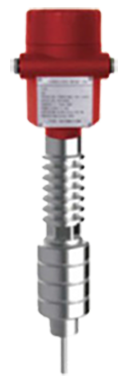

FD30G.40

FD30G.40 level meter, used for level measurement of liquid with low dielectric constant at high temperature and high pressure.
Type of sample：FD30G.40-1113.1000.10010.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High temperature and high pressure sensor, rod probe or coaxial tube probe

Accuracy ± 3mm, resolution 1mm

Measurement range 0...6m

Suitable for liquid level measurement with low dielectric constant

The process pressure can reach 40.0MPa

The process temperature can reach 400 ℃

Not affected by noise, steam, dust, vacuum, etc

It is not affected by the change of medium density and temperature

Basic parameters

Measuring range6m

Accuracy±3mm

Repeatability±2mm

Resolution ratio1mm

Frequency range100MHz…1.8GHz

Electrical parameters

The power supply 24VDC（±10%）

Singal output4…20mA / HART (two wire）

Mechanical parameters

The probe materialStainless steel

Process connectionThread、the flange

Electrical interfaceTwo M20×1.5 or two NPT1/2

Environmental conditions

Medium temperature﹣200…+400℃

Process pressure﹣0.1…40.0MPa

Enclosure protectionIP67

Explosion-proof gradeExia II CT6

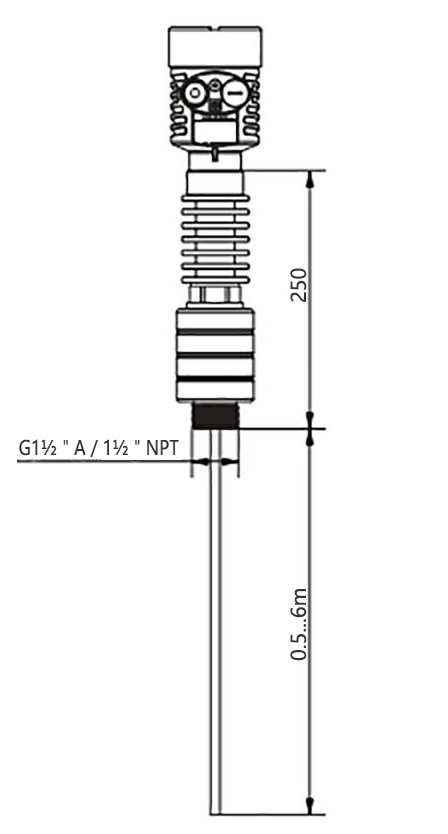

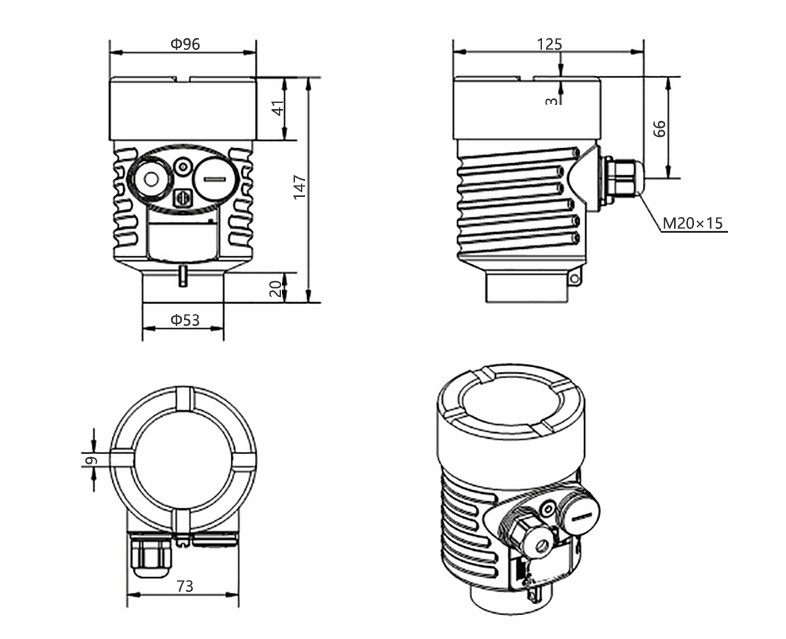

Overall dimensions

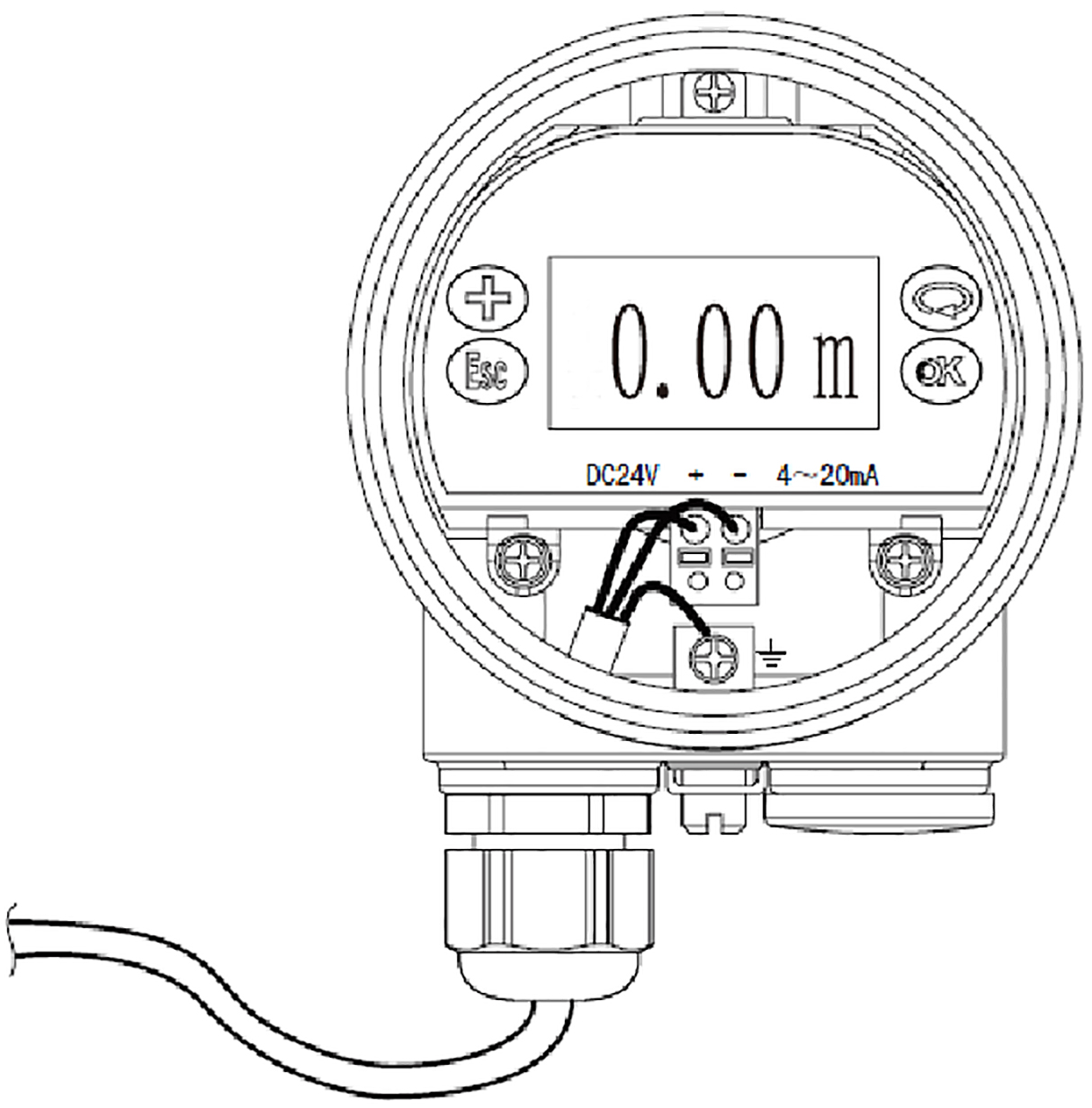

Wiring diagram
